AUTOID Pad Air-(Win) Rugged Industrial Tablet

  • CPU: Intel Core M3-8100Y
  • Display: 10.1-inch, FHD+ (1920 x 1200)
  • Memory (RAM/ROM): 8 GB/128 GB (SSD)
  • Power: 5070 mAh/7.7 V
  • Weight: 24.3oz/690g with standard battery
  • Drop Specifications: 3.9 ft. /1.2 m drops to concrete
  • Sealing: IP65

Combining consumer aesthetics with industrial protection, this product offers a large 10.1-inch screen with 1080P resolution for precise and vibrant color display. It runs on Windows Enterprise OS, meeting diverse customer needs. Data transmission is fast and stable with 2x2 MIMO dual-band Wi-Fi. Optional Intel processors, available in high- and low-performance configurations, ensure powerful performance and smooth operation.

Features

● Windows 10 powered by Intel Core, 2 x 2 MU-MIMO WiFi, 10.1-inch FHD+ display.

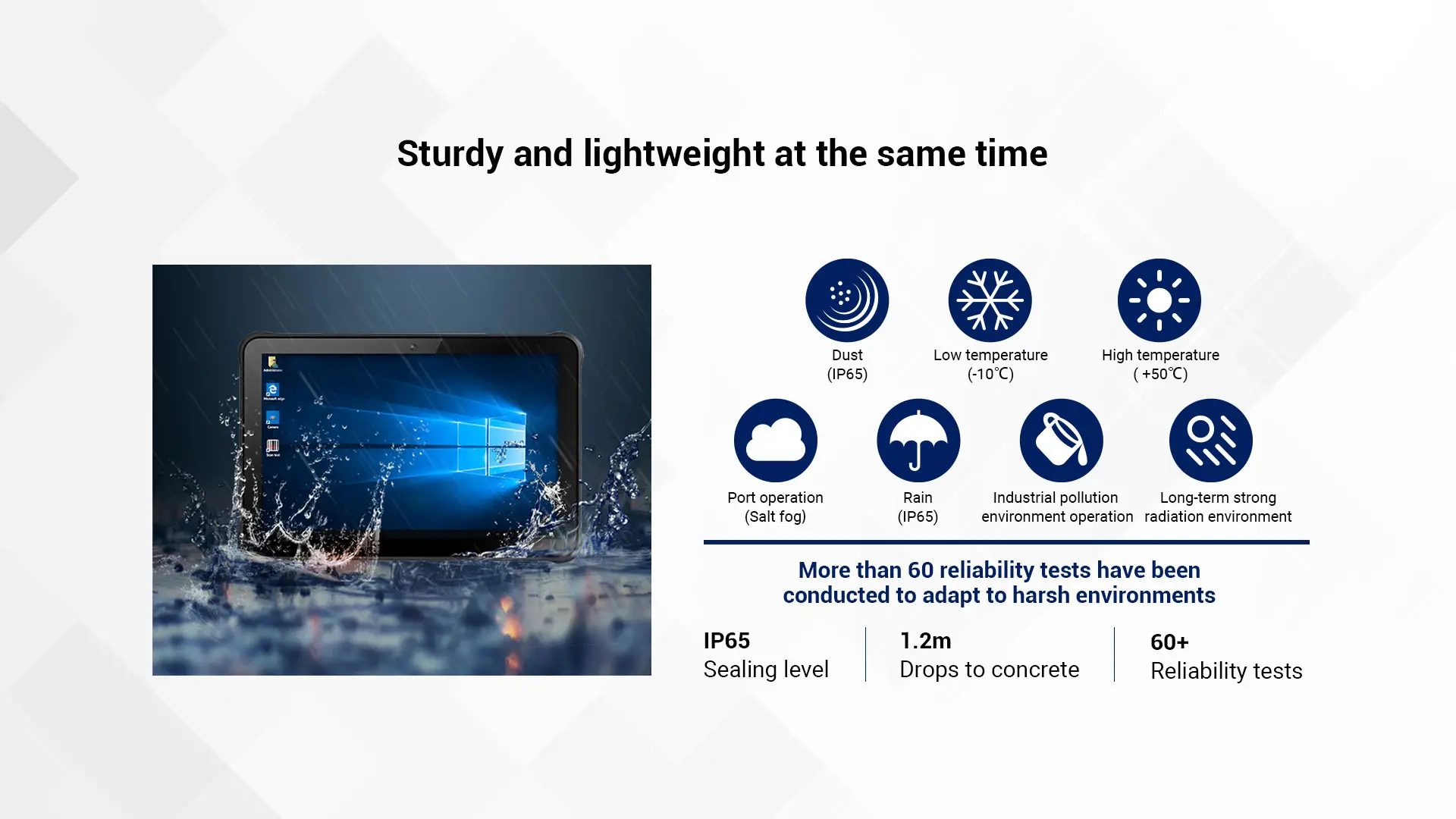

● IP65, 3.9 ft./1.2 m drops to concrete and MIL-STD-810G certification.

● Multiple accessories: Expansion Back+Rotating Hand Strap (Android SKUs only), Single Device Charging Cradle, Bracket, Connecting Rod, Docking.

AUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial TabletAUTOID Pad Air-(Win) Rugged Industrial Tablet

Specifications
Physical Characteristics

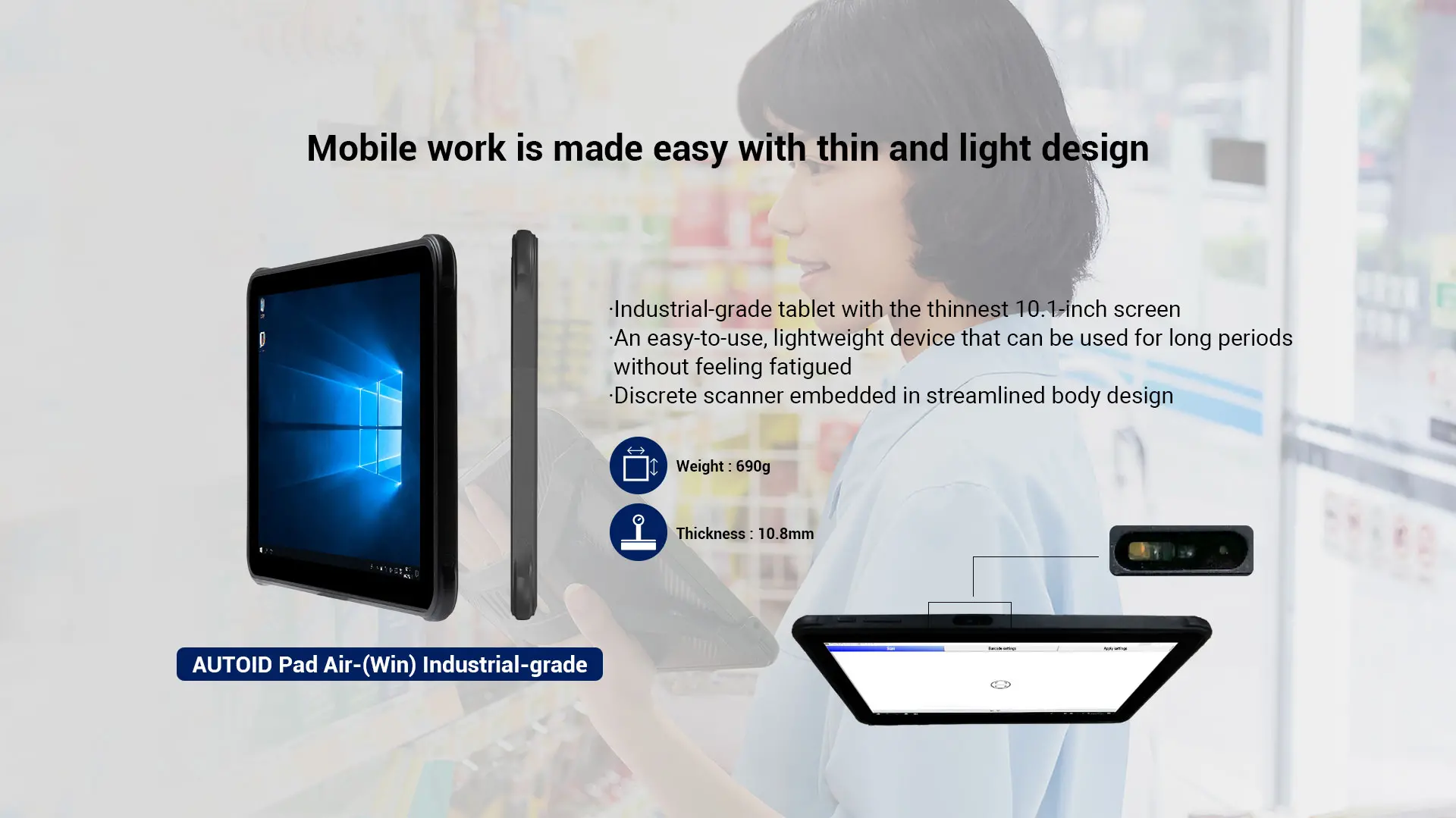

Dimensions
10.1 in. L x 6.8 in. W x 0.4(0.5) in. H
258 mm L x 173 mm W x 10.8(12) mm H
Weight
24.3oz/690g with standard battery
Display

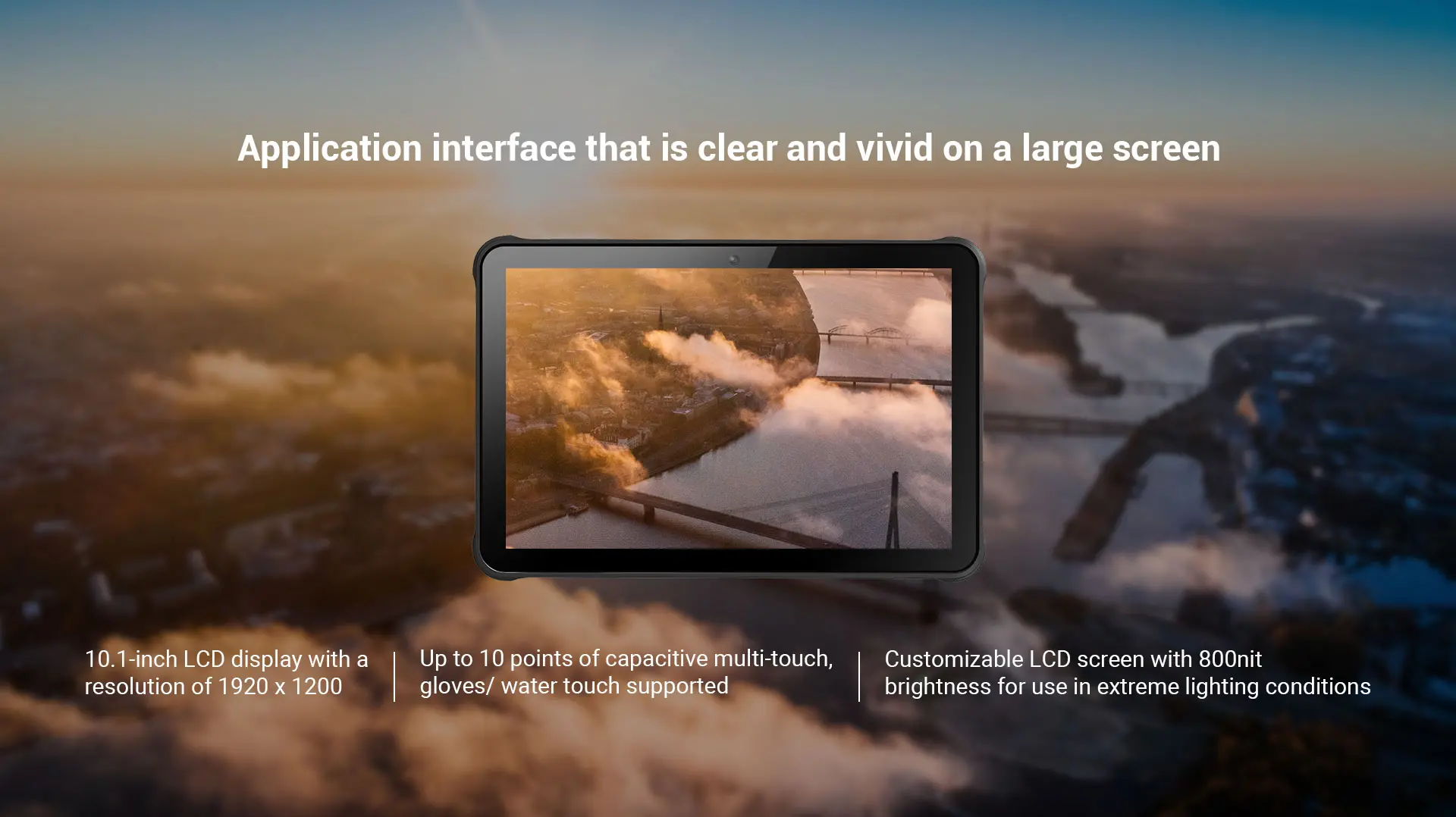

10.1 in. full angle liquid crystal display , FHD (1920 x 1200)
Touch Panel
Capacitive 10 touch, water touch support
Power
Bottom contact interface: DC IN: Maximum Input Power 27W,

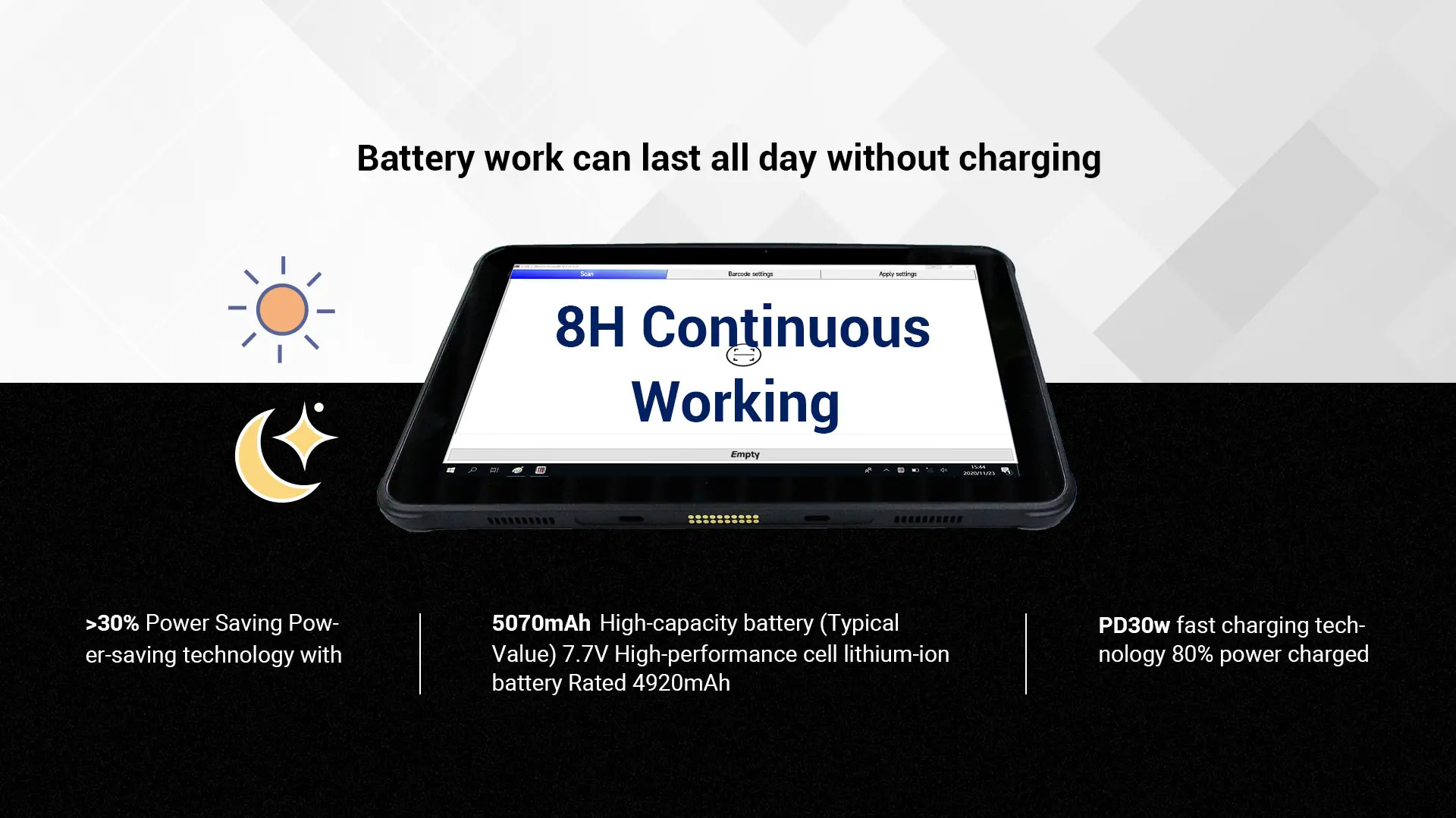

Non-removable 7.7 V lithium rechargeable battery
Typical value: 5070mAh
Rated 4920mAh
USB TYPE-C interface for PD fast charging
Expansion Slot
Micro SD Card, SDXC support
Interface / Communication
TYPE-C interface, support host charging, support USB3.0(down-compatible USB2.0), support displayport, headphones, etc.
bottom interface: USB2.0, 5V output, DC input, IO
Light
Red for charging (breathing for low power) and green for fully charged
Blue (reserved) and red for scan indication
Buttons
3 buttons (power, volume +, -)
Voice and Audio
Built-in stereo speaker, 4Ω 2W * 2, built-in dual microphones, support for TYPEC digital headsets
Performance Characteristics
CPU
Intel core M3-8100Y, 2-Core 4-thread, 1.1 GHz, maximum core frequency 3.4 GHz/Intel UHD 615, basic frequency 300 MHz, maximum dynamic frequency 900 MHz
Operating System

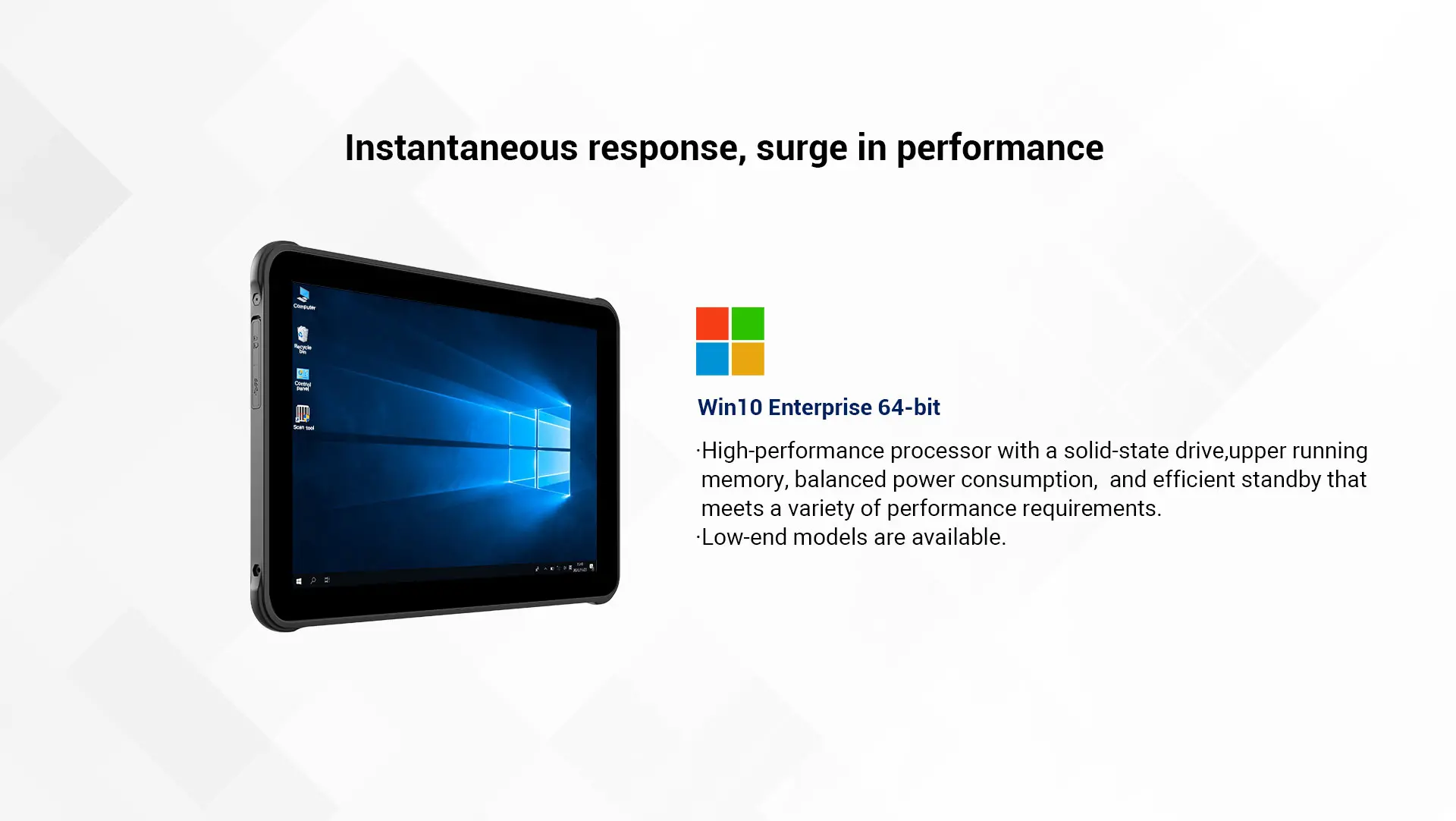

Windows 10 IoT enterprise 64 bit
Memory
8 GB (LPDDR3 1867 MHz) / 128 GB (solid state Drive,256G optional)
User Environment
Operating Temp.
14 °F to 122 °F/-10 °C to +50 °C
Storage Temp.
Battery included: -4 °F to 140 °F/-20 °C to +60 °C
Humidity
5% to 95%, non-condensing
Drop Spec.
3.9 ft./1.2 m drops to concrete at room temperature
Sealing
IP65
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Accelerometer, ambient light sensors
Data Capture
Scanning

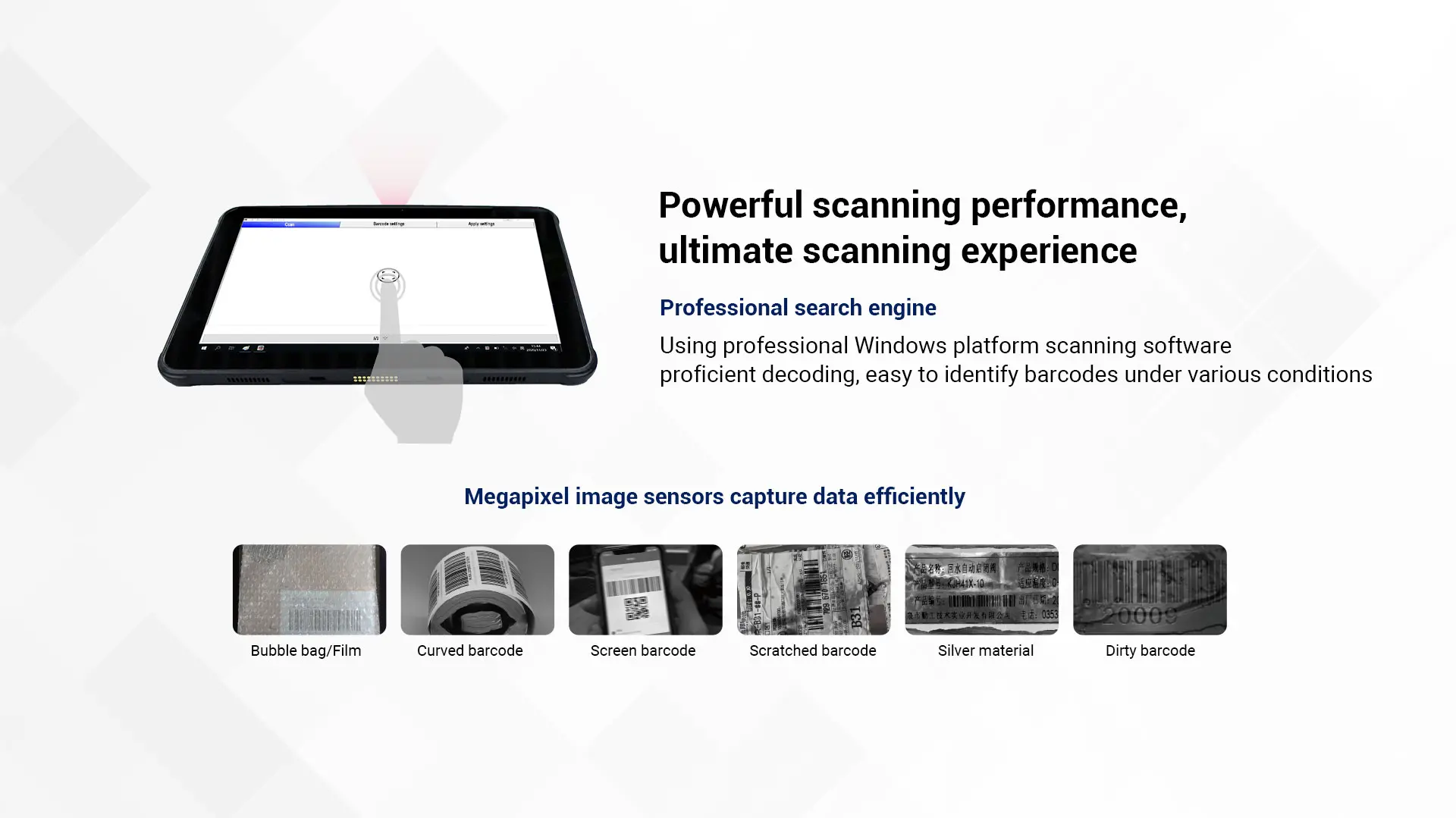

2D barcode scanner
Camera
Front: 2 MP fixed focus
Rear: 8 MP autofocus, support flashlight
Wireless Connectivity
WLAN Radio
IEEE 802.11 a/b/g/n/ac/ (2.4G/5G dual-band WIFI) 2X2 MIMO
WLAN-Data Rates
Refer to the specifications for detailed parameters
WLAN-Working Channel
Ch1 ~ CH13, CH34 ~ CH64, CH100 ~ 144, CH149 ~ CH165

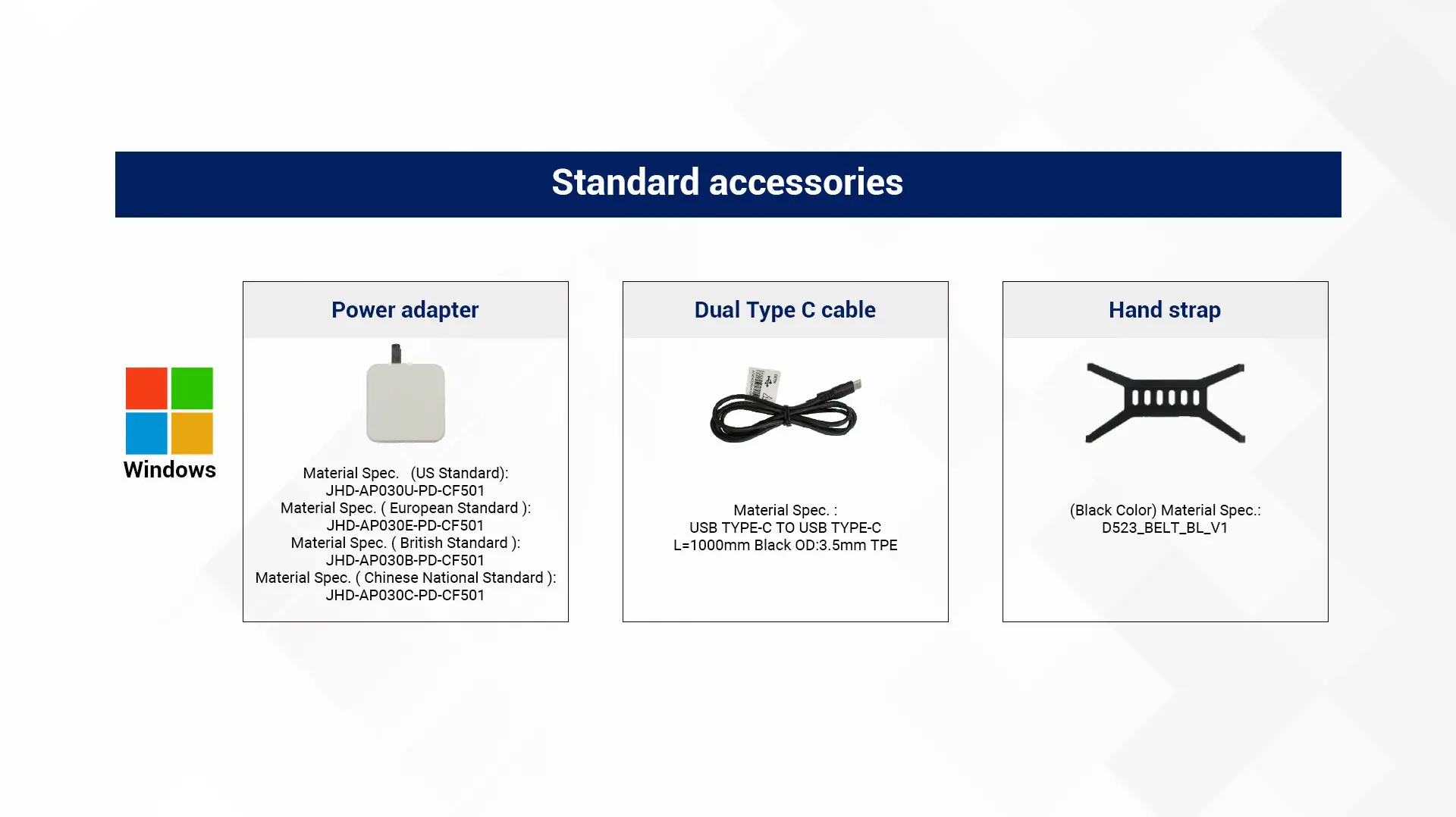

Accessories
Standard
PD adapter × 1, double Type-C data cab × 1, hand Strap × 1

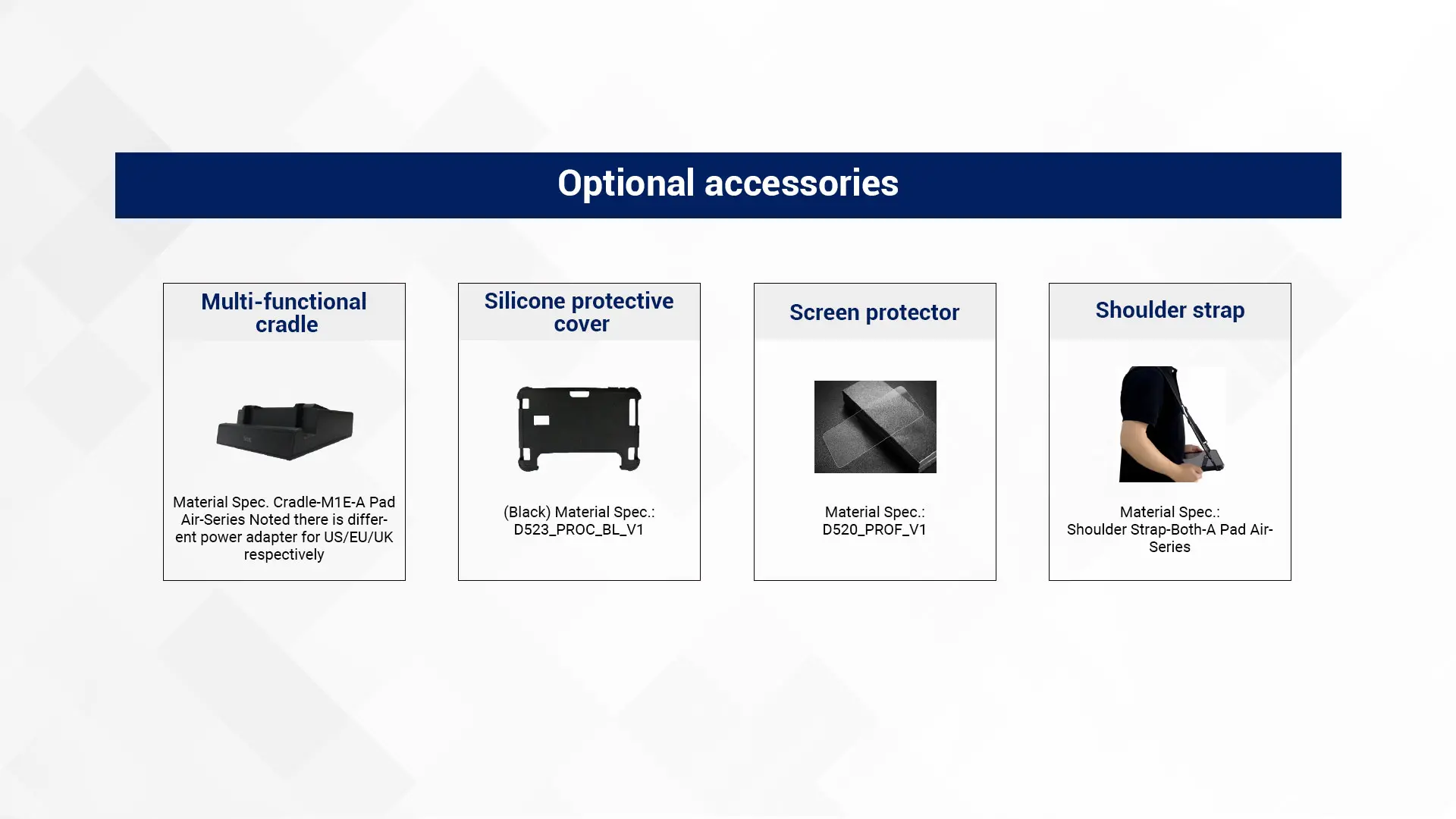

Additional

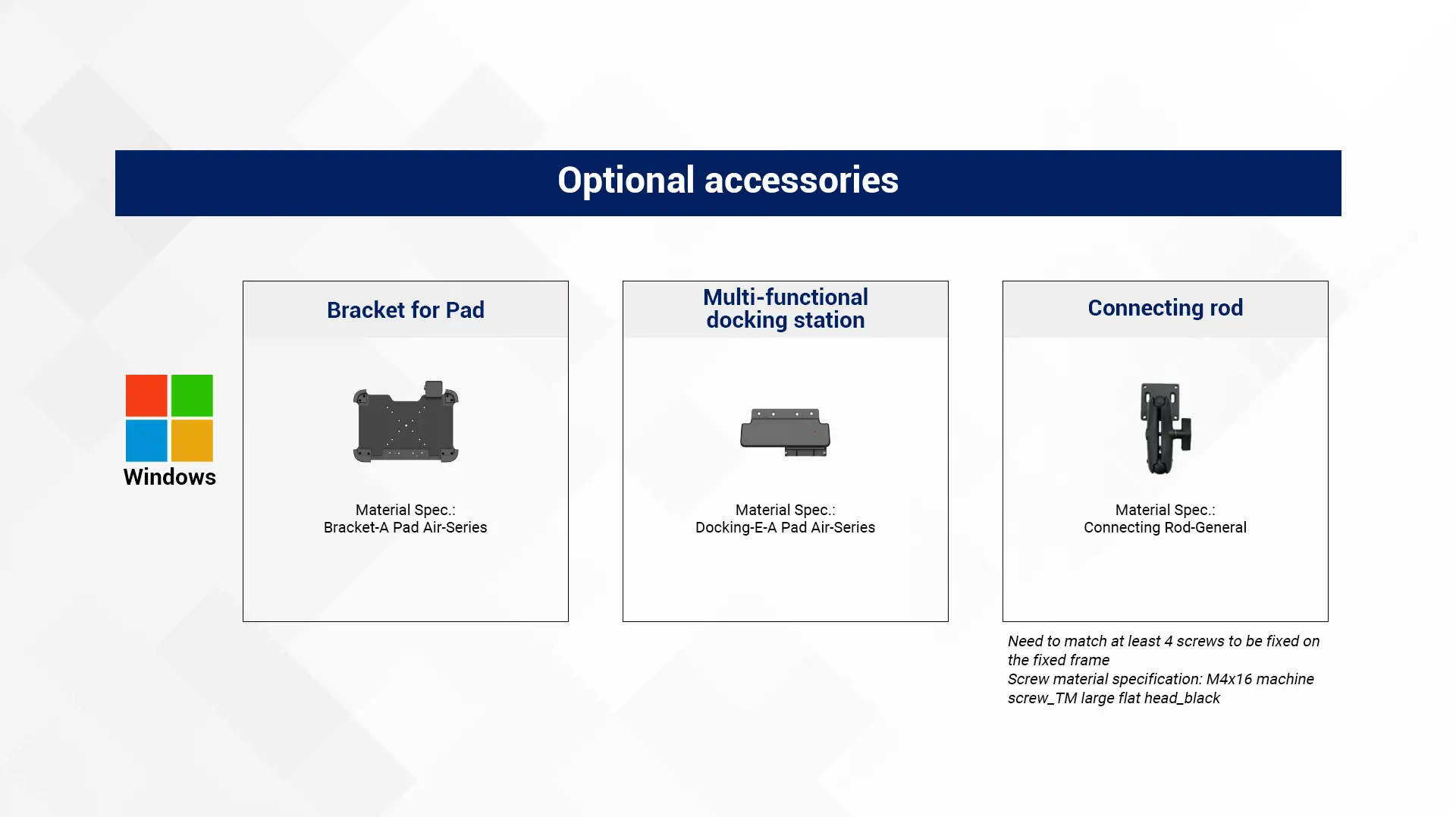

Multifunctional cradle, silicone protective cover, steel film, shoulder strap, bracket for fixed mounting, docking and connecting rod
THIRD PARTY APPLICATION SUPPORT
System Software
Windows 10
System Programming Environment
Visual studio
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
