Seuic Products / Industrial Machine Vision and Fixed Scanners / X3G

X3G Fixed Barcode Scanner

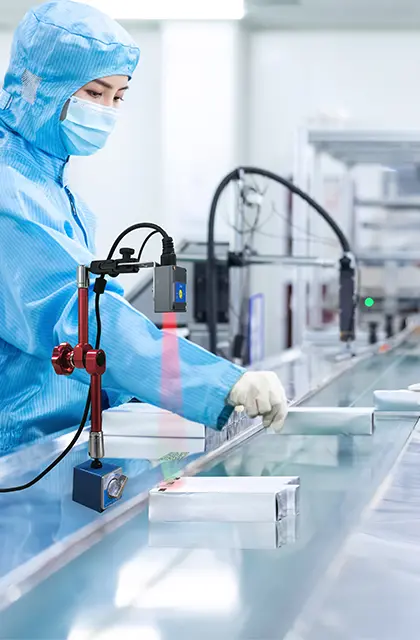

The Seuic X3G fixed industrial scanner is a plug-and-play, general-purpose stationary barcode reader designed for semi-automated data collection. Its highly sensitive scan engine design enhances automatic data collection by reducing slow reading and missed scans. This device is capable of easily reading a variety of barcodes and 2D codes on electronic parts, product packaging, paper tickets, cell phone screens, and more.

Features

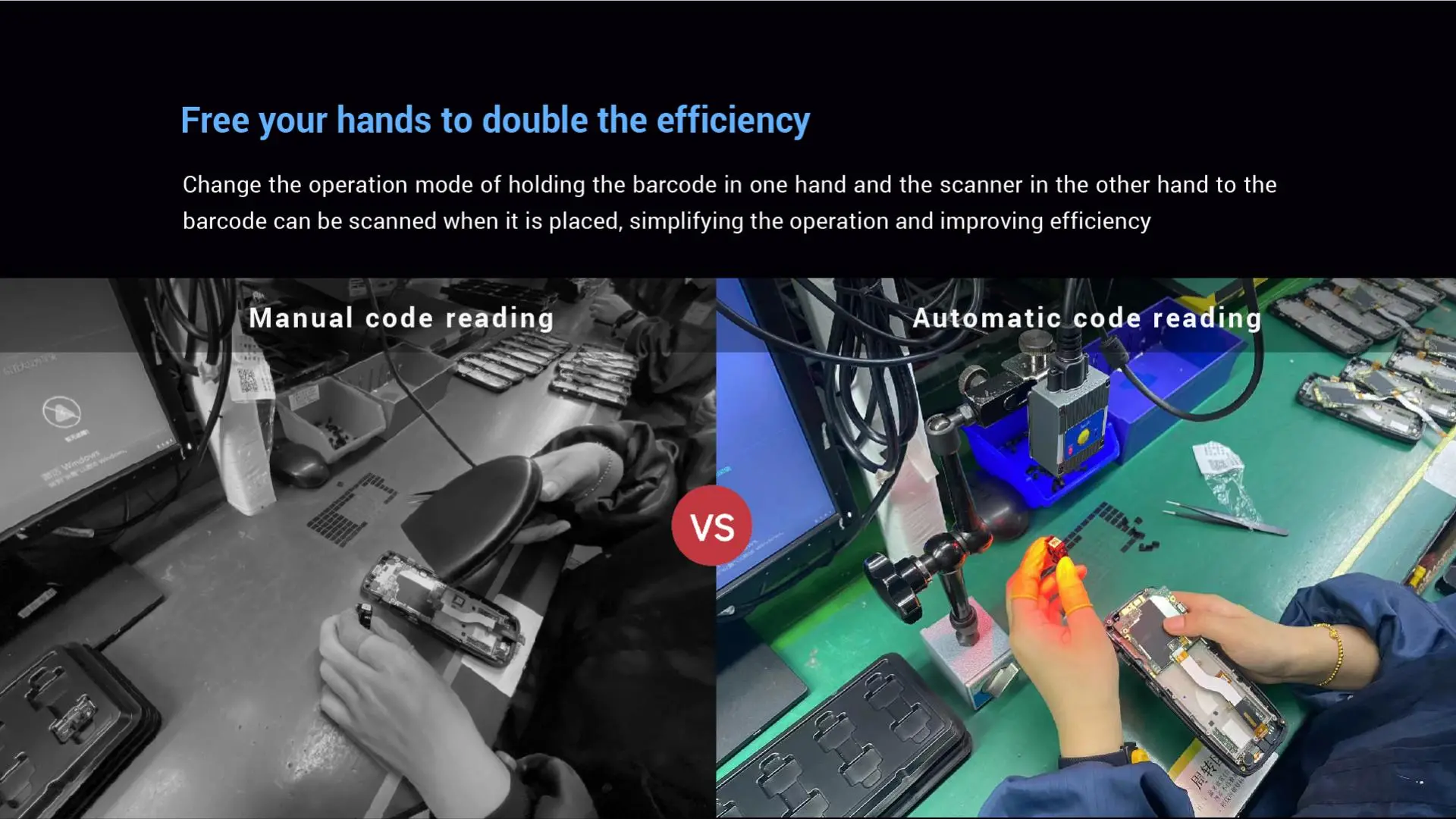

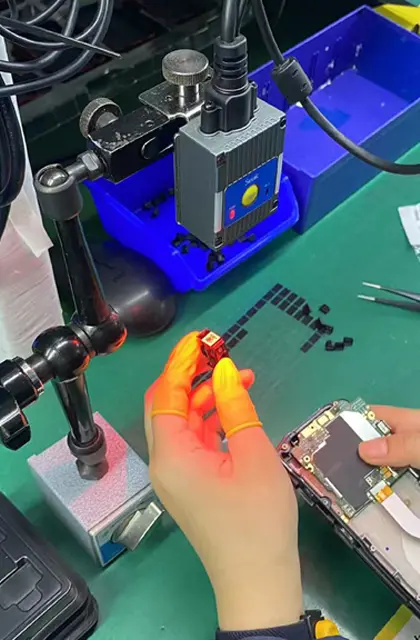

● Free your hands: replace the handheld scanner, that is, put and scan.

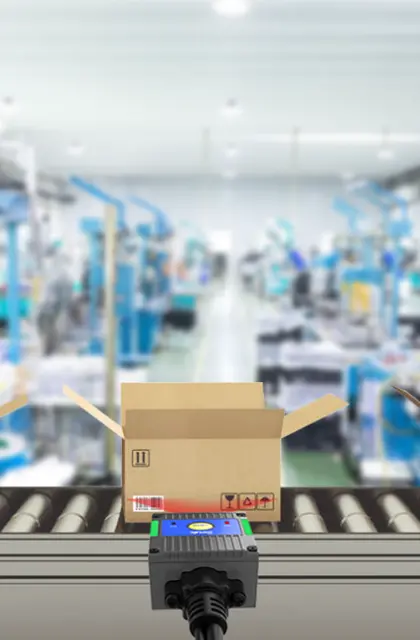

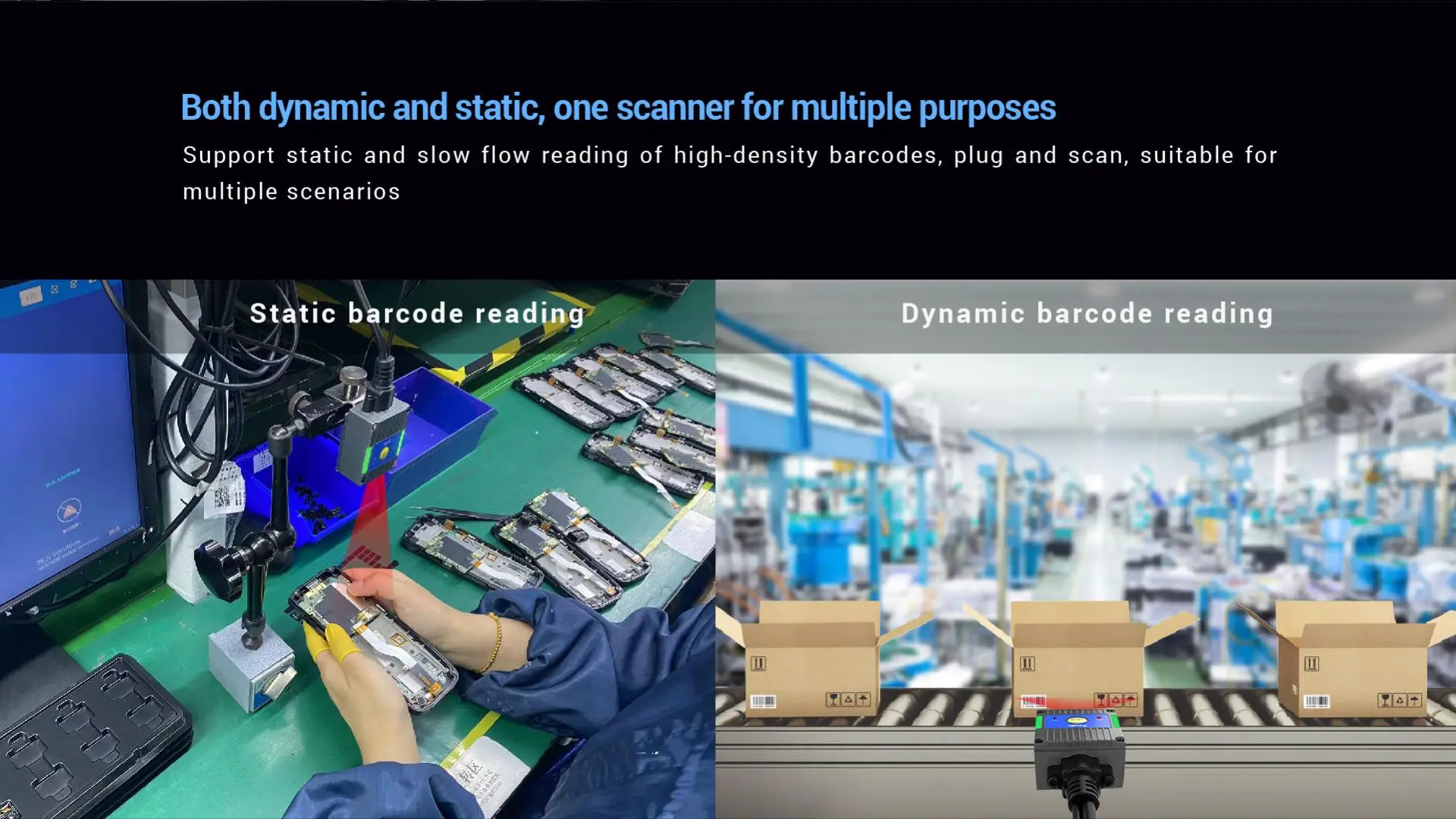

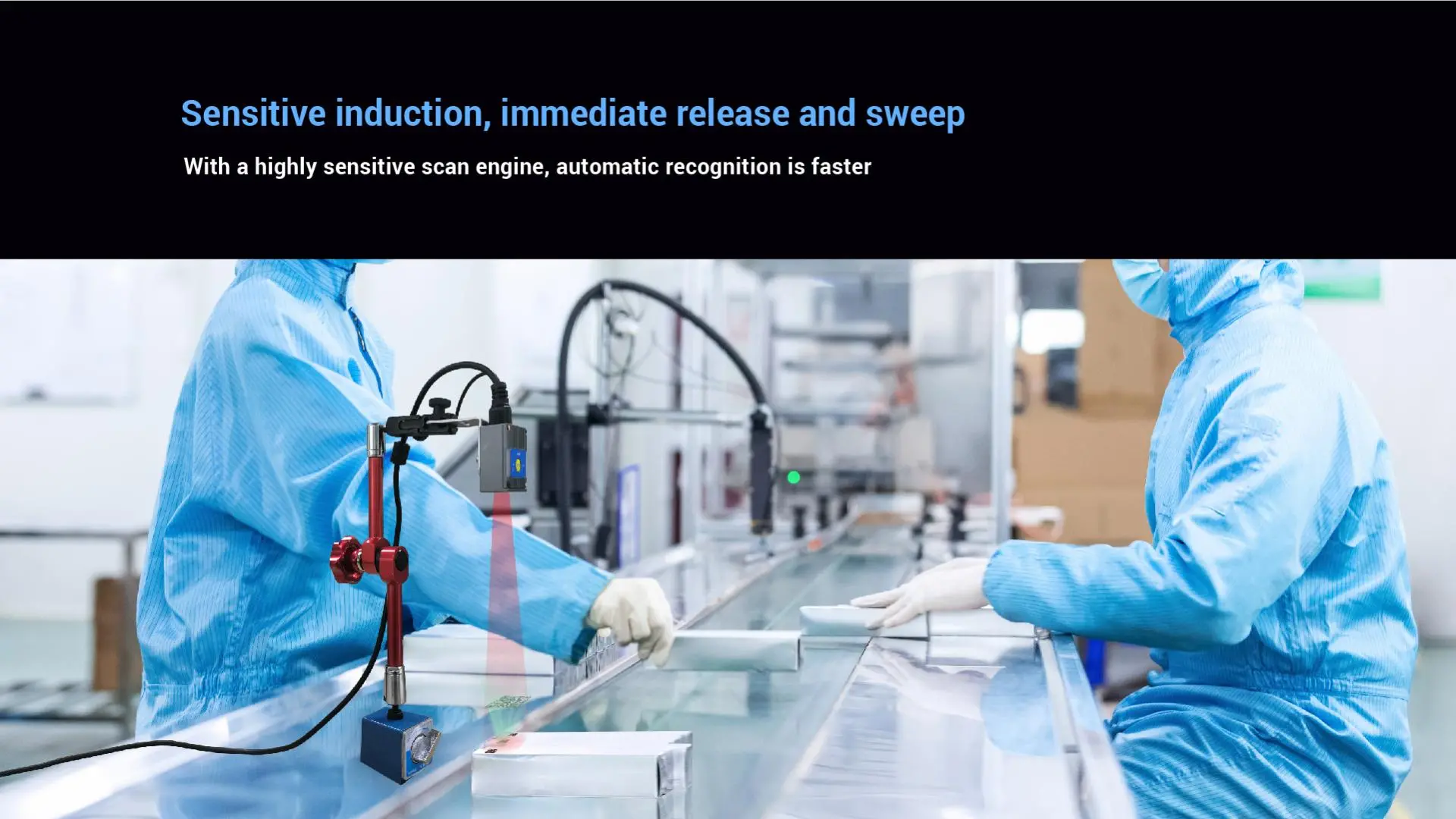

● High sensitive scan engine, support both static scanning and dynamic scanning with slow flow.

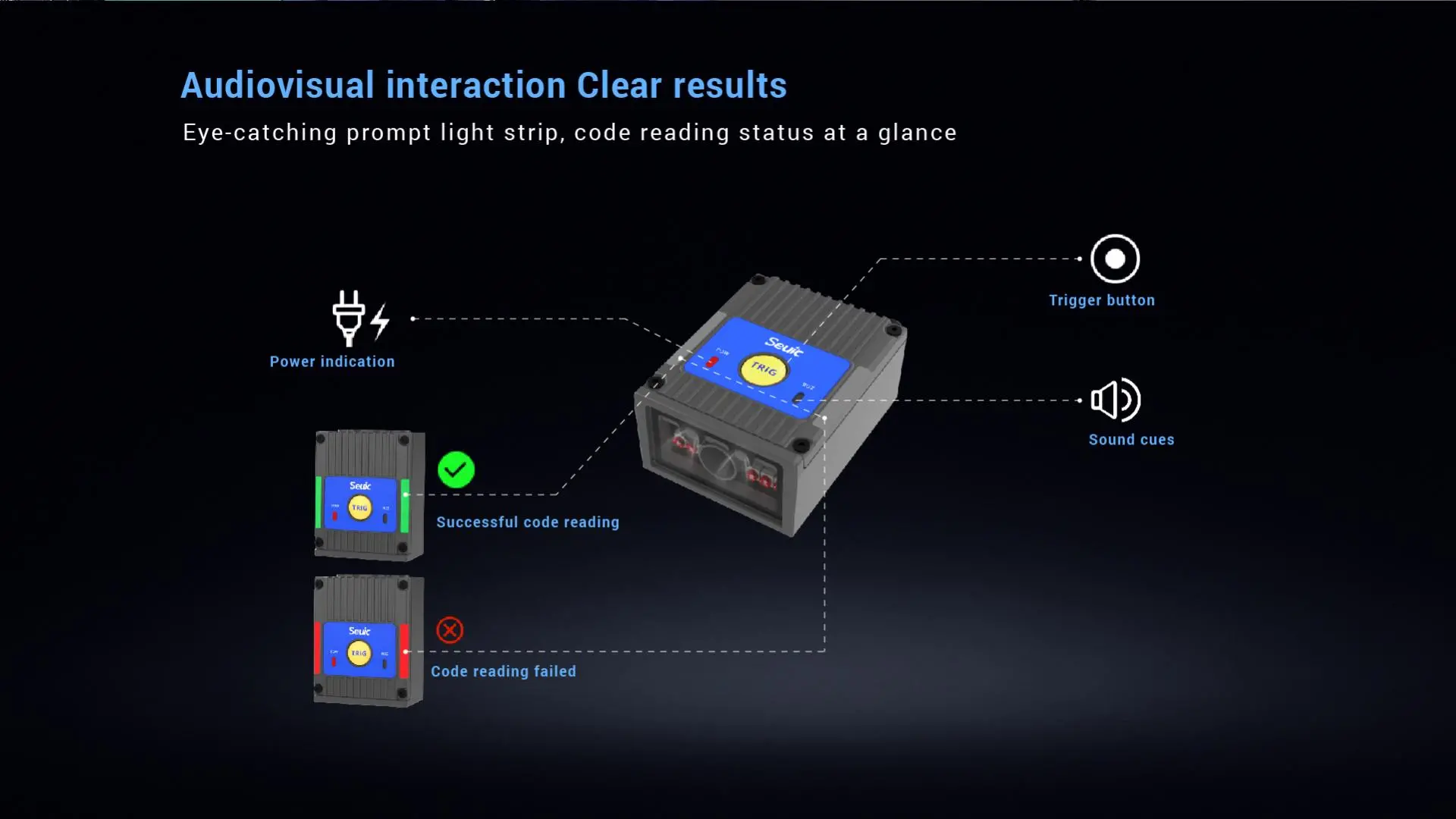

● 3.3mil decoding ability with dynamic prompt LED strip, ultra small alloy body for simple integration.

X3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode ScannerX3G Fixed Barcode Scanner

Specifications
Image Sensors
1280 * 800 COMS sensor with global shutter
Light Source
High-intensity red LED
Aimer
Red linear collimator
Image Frame
Maximum 60fps
Code Support
1D: All the standard 1D barcode
2D: DataMatrix(ECC200), QR code, Micro QR, PDF417, MicroPDF417, Aztec etc.
Rotate
Omnidirectional barcoding reading
Accuracy
1D: 3.3mil
2D: 5.0mil
Standard Range for Typical Symbols-HD
3.3mil Code 39: 40mm ~ 80mm
10mil Code 39: 50mm ~ 150mm
10mil Datamatrix: 30mm ~ 130mm
ENA-13 100%: 30mm ~ 165mm
Standard Range for Typical Symbols-SR
10mil Code 39: 50mm ~ 200mm
10mil Datamatrix: 35mm ~ 250mm
ENA-13 100%: 30mm ~ 300mm
Field of View
46° horizontal, 29° vertical
Trigger Mode
Manual trigger, presentation mode, continuous trigger mode, serial port command
Print Contrast
≥30%
Communication Interface
USB, RS-232
Dimension
40mm x 50.3mm x 23mm
Weight
About 34g
Operating Temperature
0℃ to 50℃
Storage Temperature
-20℃ to 70℃
Humidity
5% to 95% RH non-condensing
Environmental Sealing
IP54
Shell Material
Aluminium alloy+ABS
Power
DC 5V±5%; 300 mA ±5% (Typical), 450 mA ±5% (Maximum)
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
