Dimensions
6.3 in. L x 2.6 in. W x 0.8 in. H
160.34 mm L x 67.02 mm W x 19.5 mm H
Weight
9.5oz./268g (include battery)
Display
4.0 in. IPS screen (800 x 480)
Touch Panel
Capacitive touch, supporting wet hand mode and thick glove mode
Power

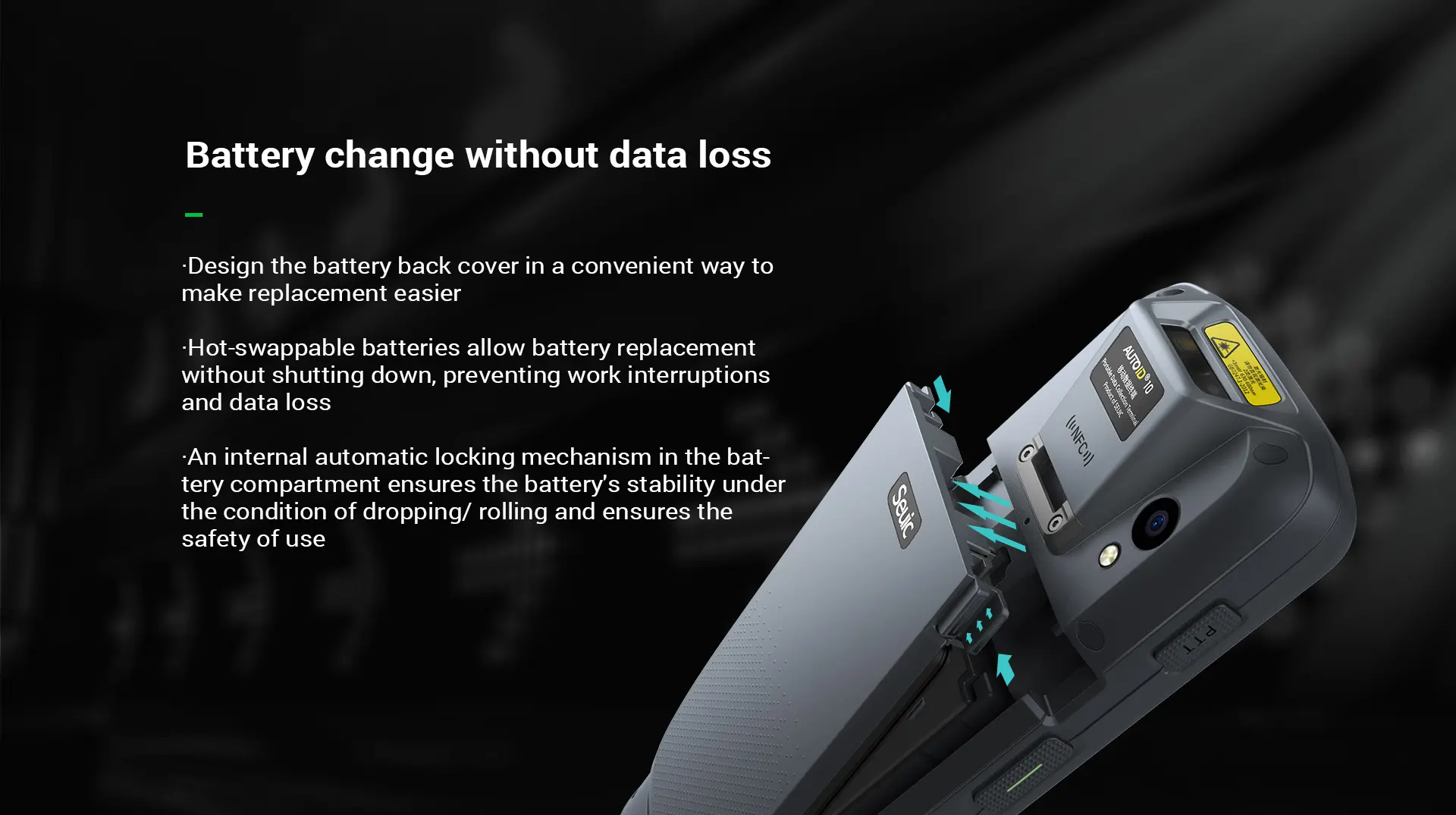

Detachable 5360mAh Li-ion rechargeable battery with hot-swap
50mAh Li-ion spare battery
Expansion Slot
Micro SD card, compatible up to 128GB
Interface / Communication
Support Type-C, support OTG
Notifications
Sound, vibrator, LED light indication

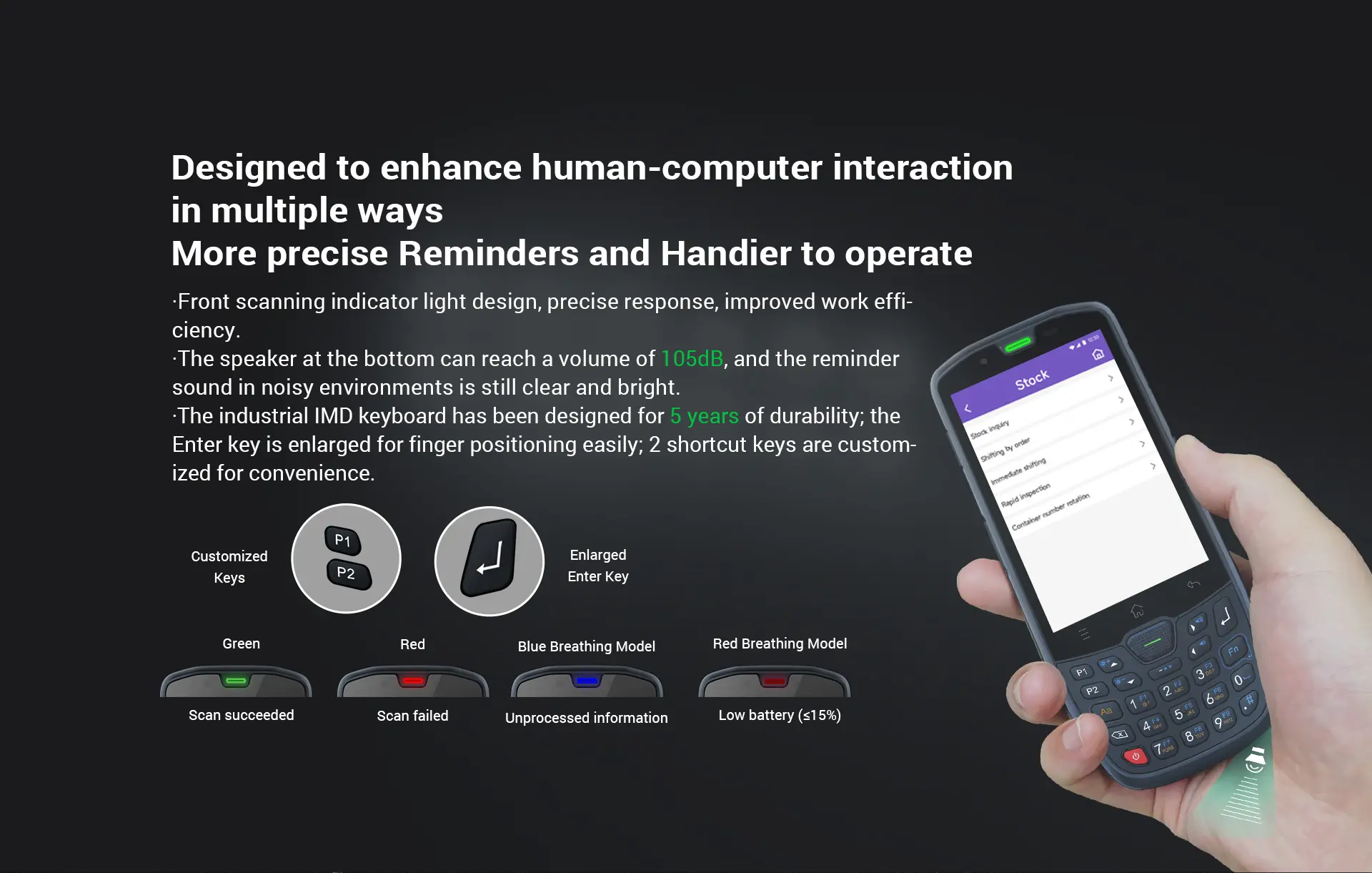

Keypad
27 keys: front key*24, side scan key*2, PTT key*1 (inner light-transmitting industrial IMD keyboard)
Voice and Audio
Built-in single loudspeaker, built-in dual microphone, Type-C support earphone
Performance Characteristics
CPU
Qualcomm Octa-core 2.0GHz
Operating System
Android 11, GMS with AER
Memory
4GB LPDDR4 RAM / 64GB UFS2.1 ROM
Operating Temp.
-4 °F to 122 °F / -20 °C to +50 °C
Storage Temp.
Battery included: -40 °F to 140 °F / -40 °C to +60 °C
Battery excluded: -40 °F to 158 °F / -40 °C to +70 °C
Humidity
5% to 95%, non-condensing

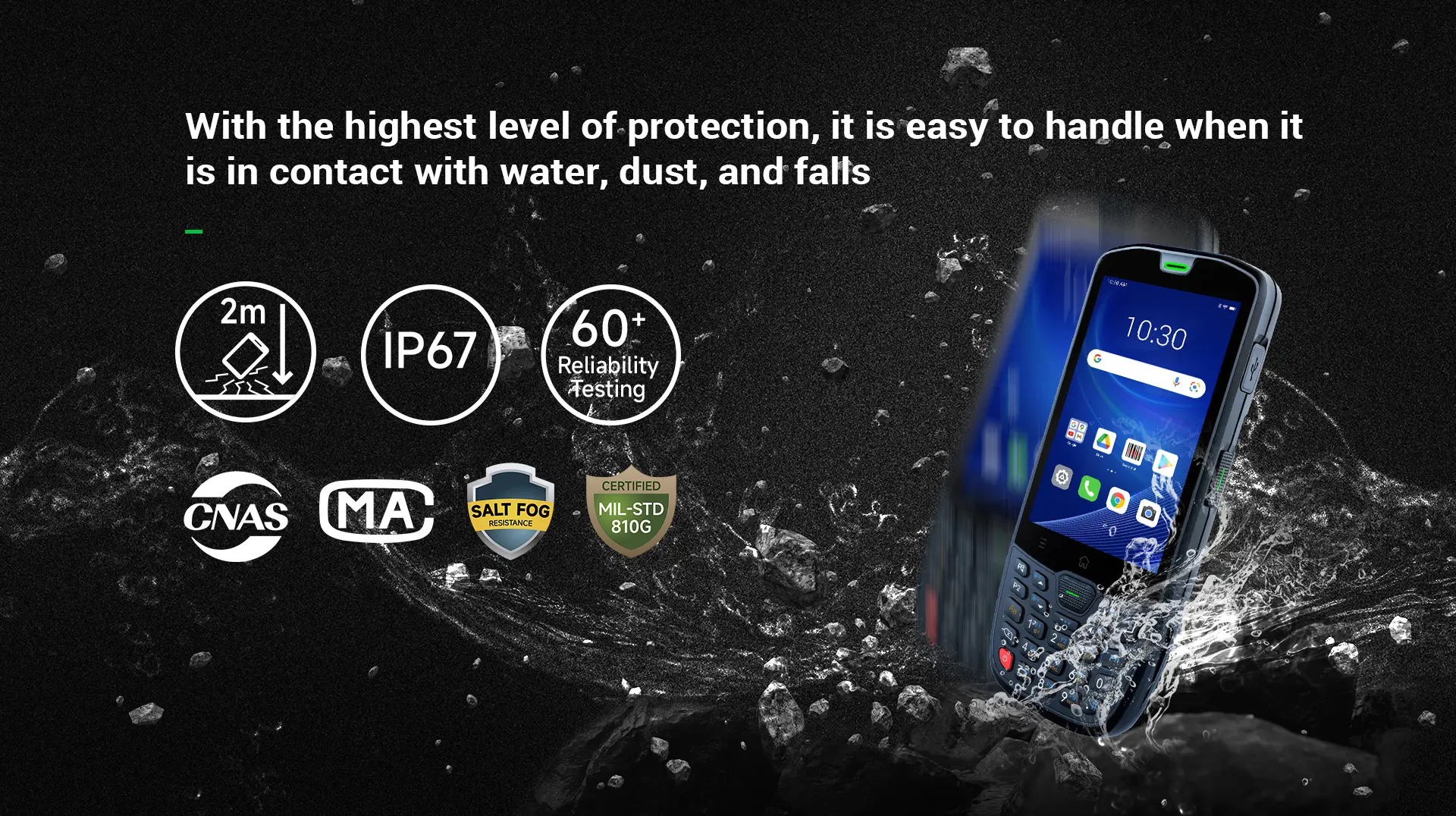

Drop Spec.
Multiple 6.6 ft. / 2m drops to marble across the operating temperature range
Tumble Spec.
1000 rounds of tumble from 1.6 ft./0.5 m equals to 2000 impacts
Electrostatic Discharge (ESD)
±15 kV air discharge, ±8 kV direct discharge
Sensor
Optical sensor, proximity sensor, gravity sensor, gyroscope, e-compass
Scanning
Honeywell SR 2D scan engine
Zebra SE5500 2D scan engine
Camera scanning
Camera
Front: 5 MP fixed focus, 2592*1944 (taking photo)
Rear: 13 MP Auto-foucs, support flashlight, can be used for lighting, 4208*3120 (taking photo), 1080P@30fps (making video)

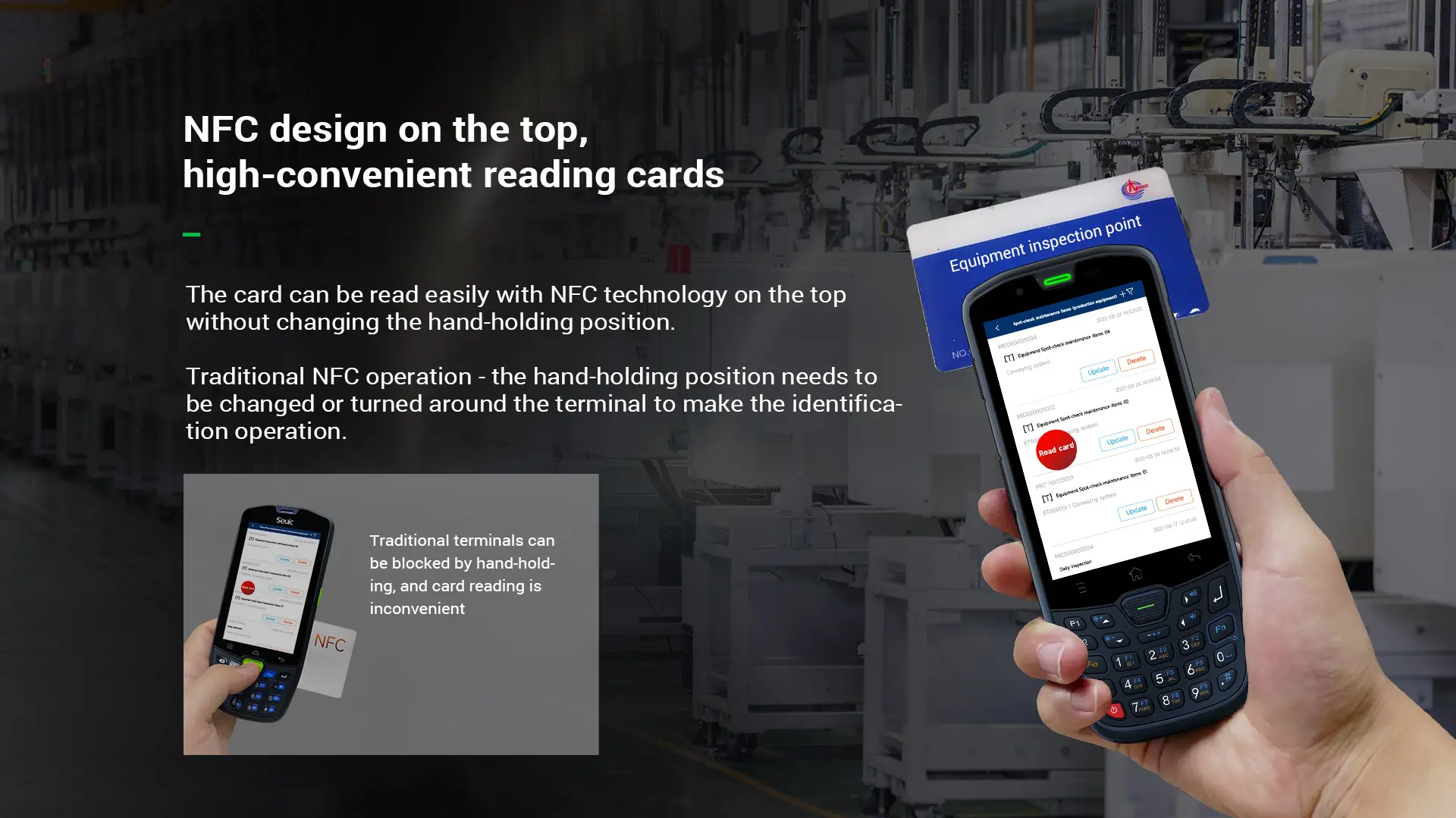

NFC
Supports tags ISO15693, ISO14443A/B (without encryption protocol), ISO14443A with encryption protocol (Mifare one S50,S70 and compatible cards); supports NFC protocol
WLAN Radio
Refer to the specifications for detailed parameters
WLAN-Data Rates
Refer to the specifications for detailed parameters
WLAN-Working Channel
CH1~CH13, CH34-CH165
Security of WLAN
Supports OPEN, WEP, WPA2-PSK (TKIP+AES), WPA3, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, etc，
WWAN Radio
Refer to the specifications for detailed parameters
GPS
Refer to the specifications for detailed parameters
WPAN-Bluetooth
Bluetooth 5.1 (compatible with BLE)
Standard
Power adapter, USB cable, battery, hand strap
Additional
4-Slot battery charger, single device charging cradle with one spare battery charging slot, 5-slot charging cradle, pistol grip, multifunctional bag, touch pen, tempered glass screen protector, device protect cover
THIRD PARTY APPLICATION SUPPORT
System Software
Android 11
System Programming Environment
Eclipse, android studio
*
Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
