Sensor
CMOS Image Sensor with global shutter
Number of Pixels
1.3M, 1080x1280

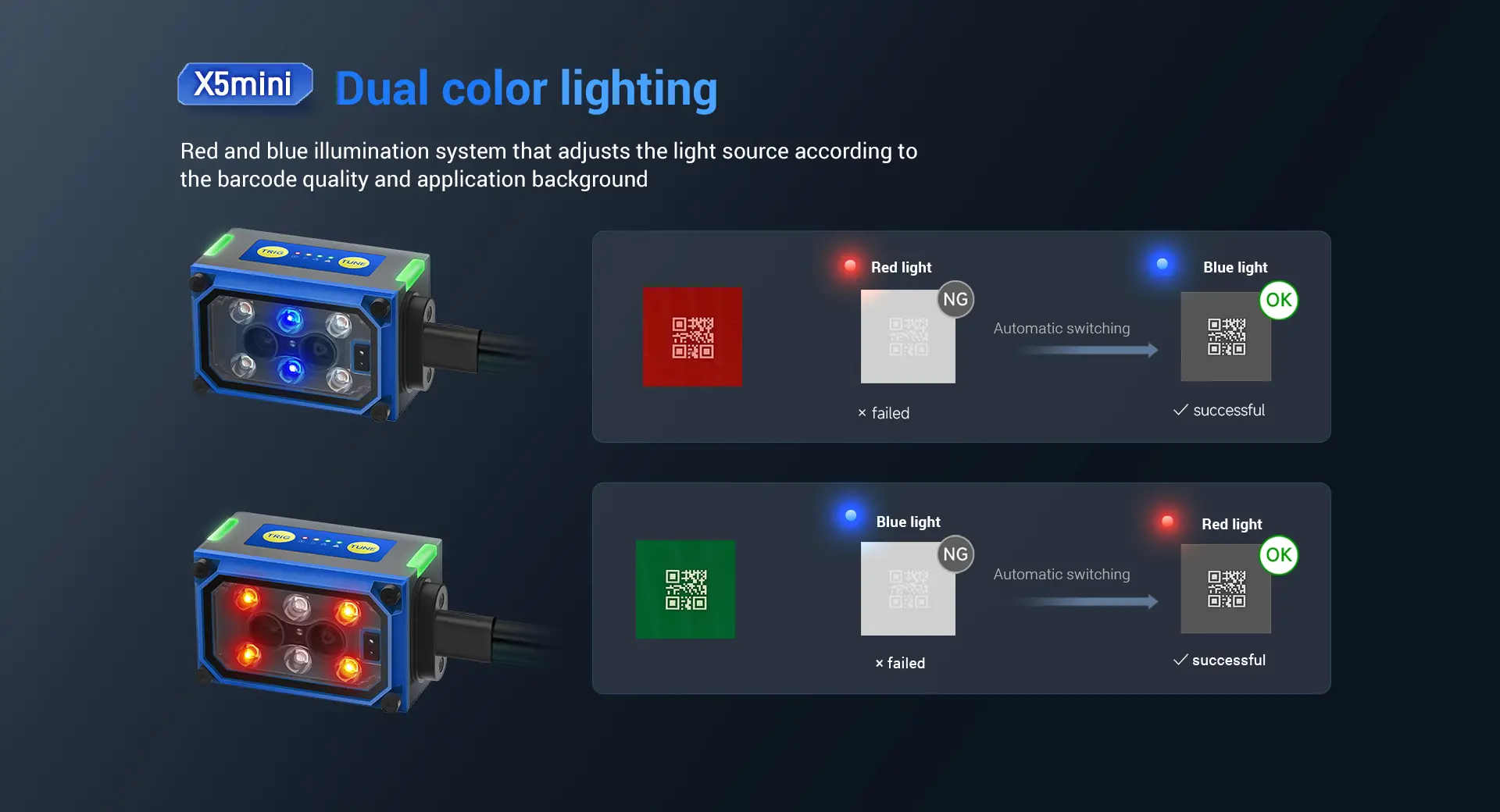

Light Source
High-intensity red LED and blue LED
Aimer
Laser positioning aimer

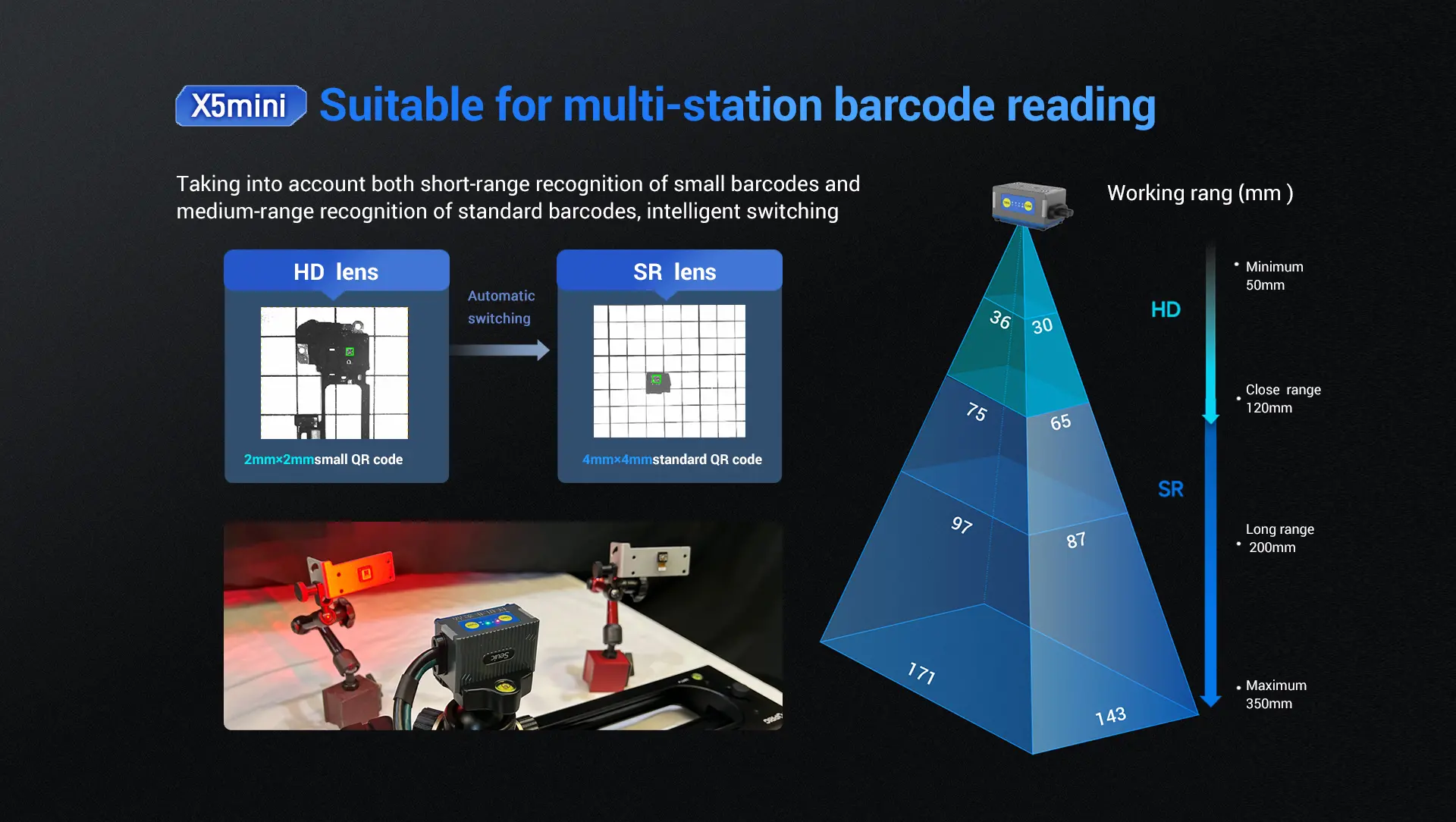

Focus Adjustment
Dual Prime lens
Supported Symbol
Refer to the specifications for detailed parameters

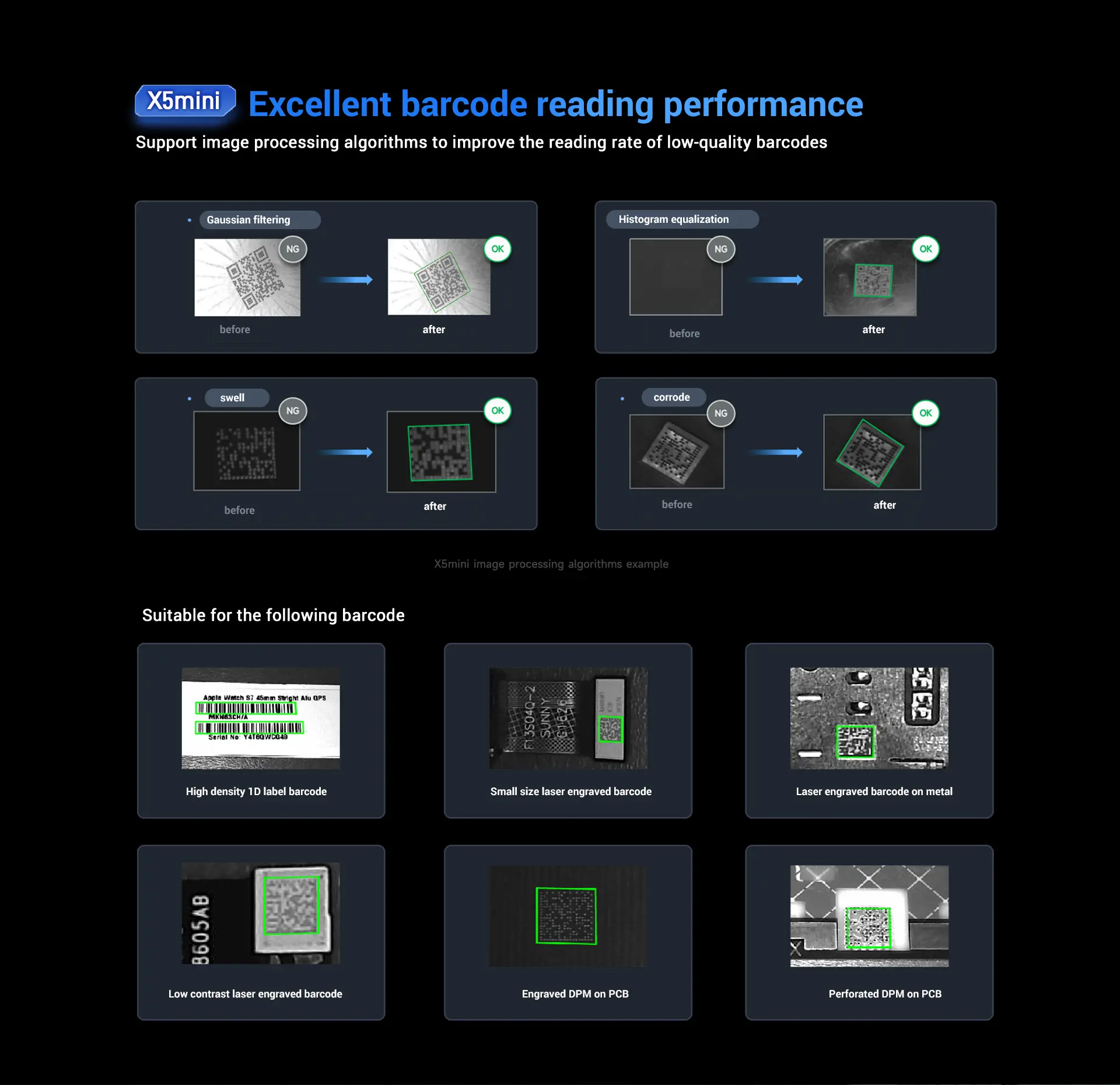

Minimum Resolution
1D: 3.3mil
2D: 5.0mil
Control Input
Points: 2
Input type: Bidirectional voltage input
Maximum rating: 30V
Minimum ON voltage: ＜4V
Maximum OFF current: 0.001A
Control Output
Points: 2
Output type: 2 optocoupler output
Maximum rating: 30V
Minimum load current: 1output: 50mA or less, 3-output total: 100mA or less
Leakage current when OFF: 0.1mA or less
Residual voltage when ON: 1V or less

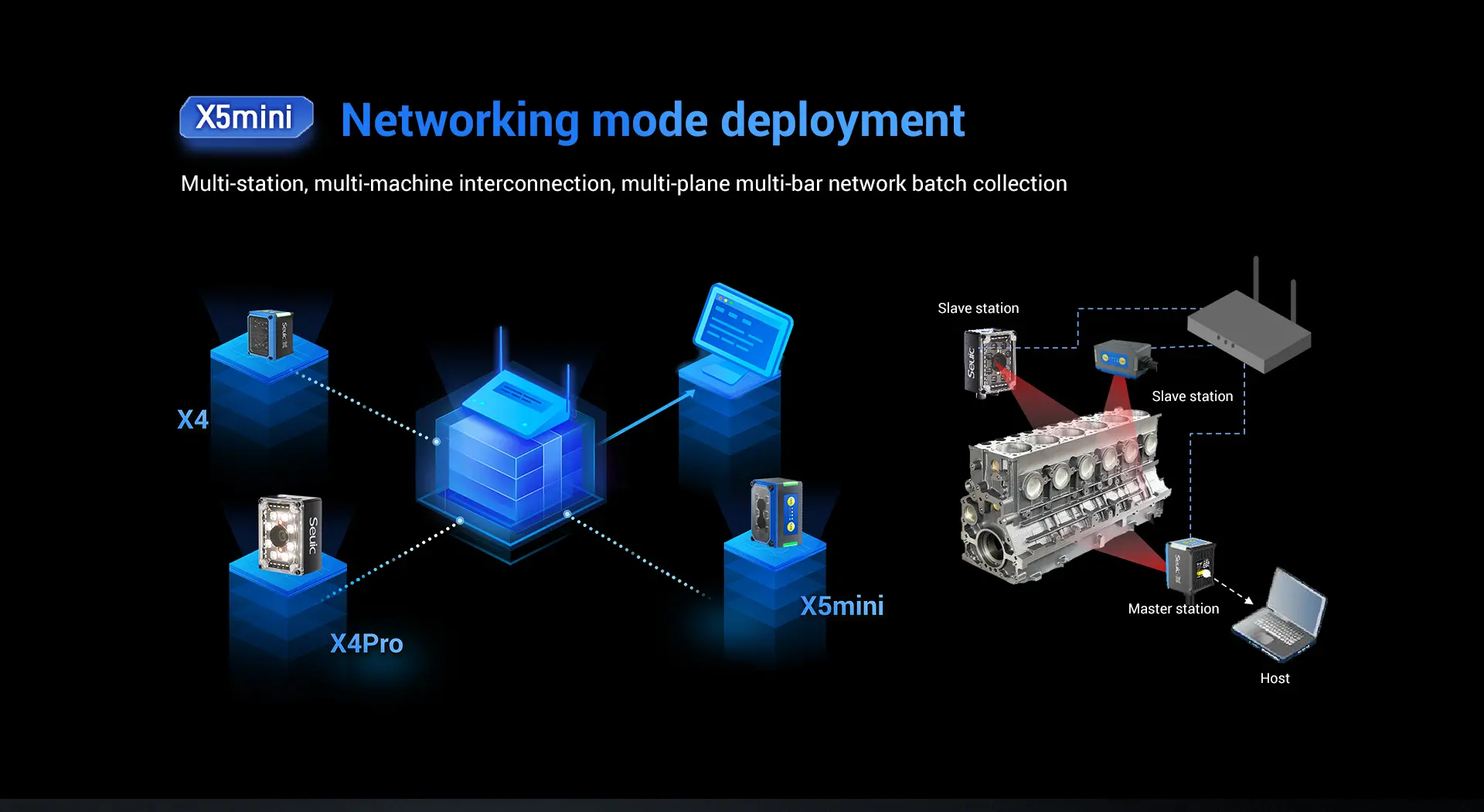

Ethernet
Supported protocol: TCP Client, TCP Server, Profinet, MELSEC, Ethernet/IP, Mod Bus Tcp (poll/slave), Fins
Serial Communication
Refer to the specifications for detailed parameters
USB
Communication standard: USB2.0 Full Speed compliant
Ambient Temperature
0° to 50°C
Ambient Storage Temperature
-20°C to 70°C
Relative Humidity
5 to 95% RH (No condensation)
Storage Ambient Humidity
5 to 95% RH (No condensation)
Ambient Light
0 to 10000 lux
Operating Environment
No dust or corrosive gas present
Power Supply Voltage
10 to 30V DC
Current Consumption
0.5 to 1.5A

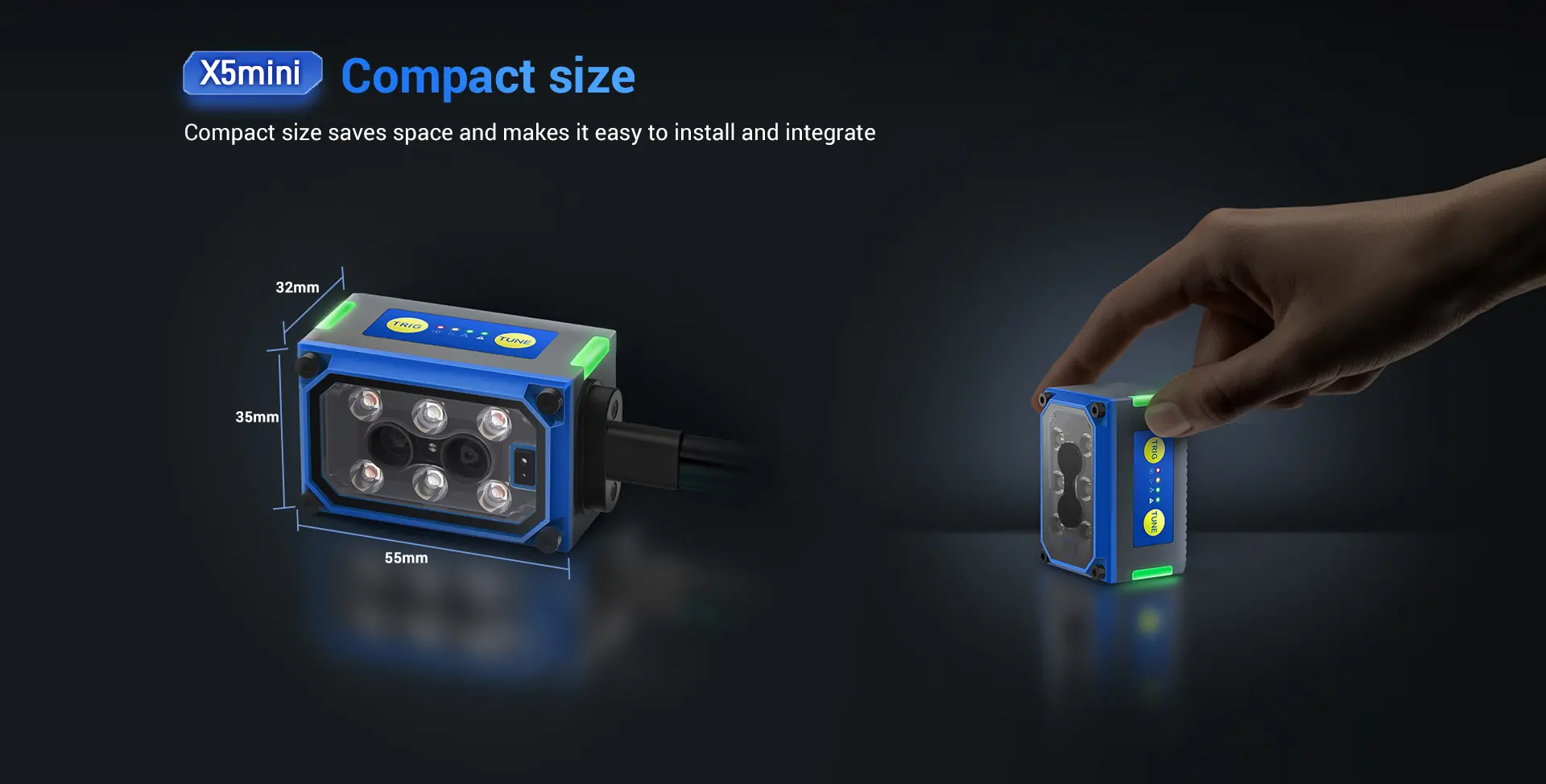

Dimensions (L x W x H)
55mm x 35mm x 32mm
*
