AUTOID UF2-C Fixed RFID Reader

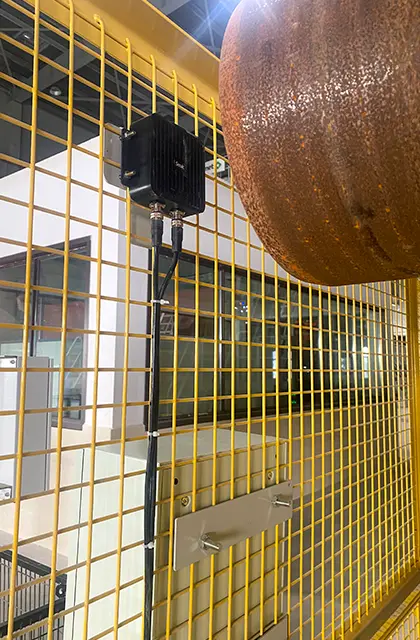

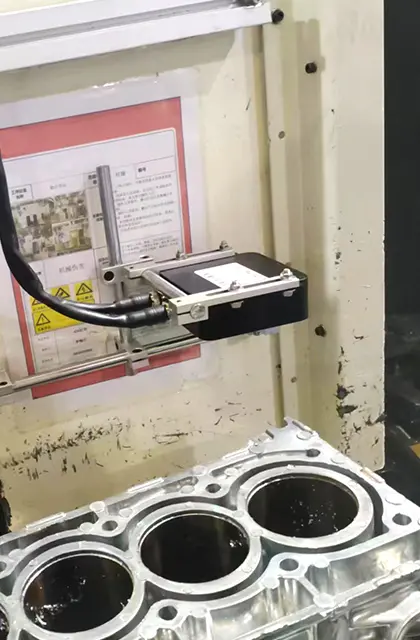

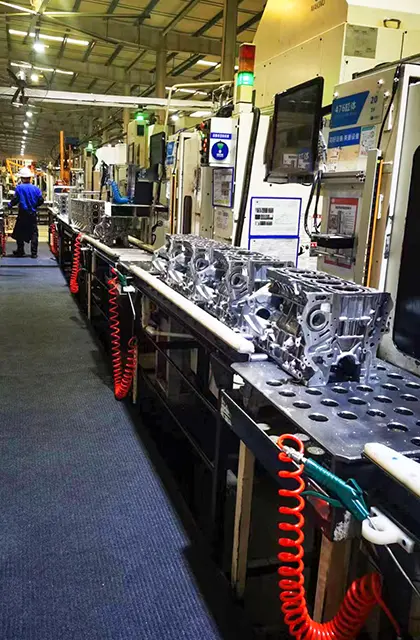

Developed by SEUIC, the UF2-C fixed RFID reader features an embedded QM100 engine and comes standard with a TCP/IP protocol interface, while optional interfaces include CAN, RS232 and RS485. Using proprietary and efficient signal processing algorithms, the UF2-C fixed RFID reader achieves high read rates and fast tag detection, making it ideal for a range of applications such as logistics and production control.

Features

● Mini size (95 mm Lx 95 mm Wx 36 mm H), low power consumption (<12W), IP67.

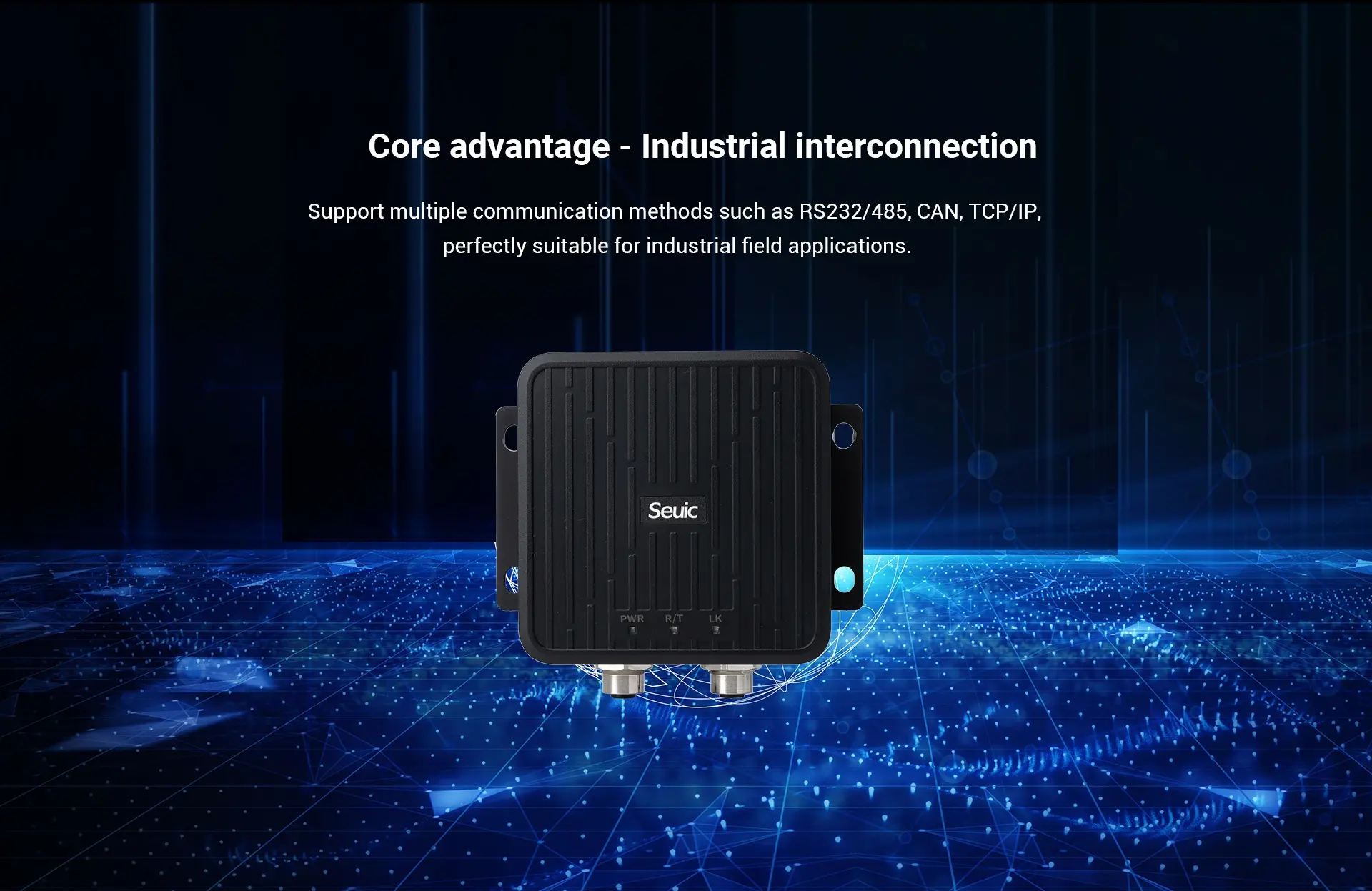

● Adopted with CAN, TCP/IP, RS 232 communication port.

● QM100 module, 3 dBi Circular Polarization Antenna.

AUTOID UF2-C Fixed RFID ReaderAUTOID UF2-C Fixed RFID ReaderAUTOID UF2-C Fixed RFID ReaderAUTOID UF2-C Fixed RFID Reader

Specifications
Physical and Environment Parameters
System
STM32
RAM
192K Byte
ROM
1M Byte
Interface / Communication
Default network port (10/100M adaptive speed)
Optional CAN
Optional RS232 (rate 115.2Kbit/s)
Optional RS485 (half duplex)
Power Supply
12-24VDC (12V recommended)
Power Consumption
< 12W
Interface

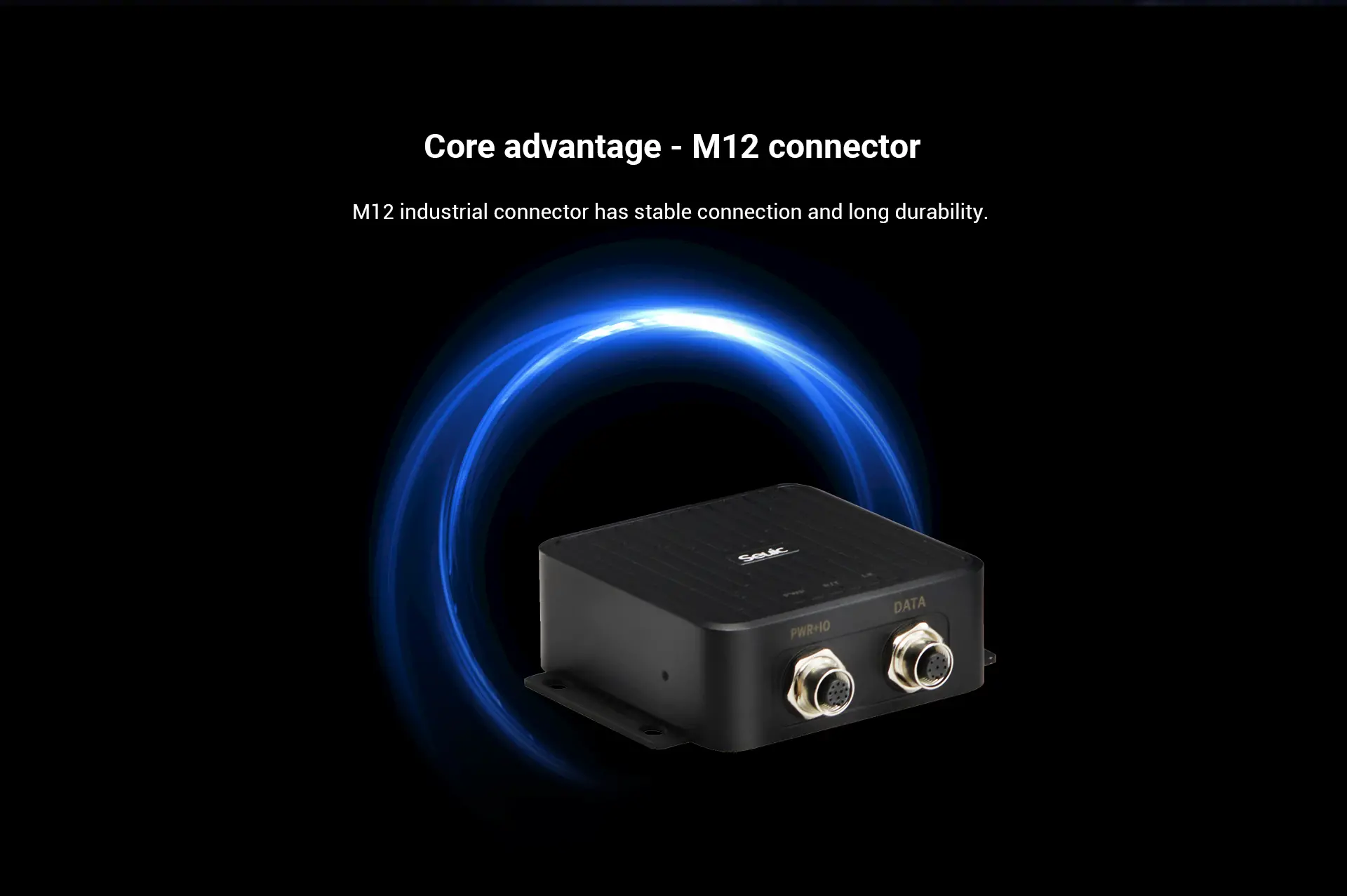

M12 industrial interface * 2 Including power supply, GPIO and communication interfaces
Input and Output
By default, 2-in 2-out optocoupler isolated GPIO, compatible with 5-24V level
Support GPIO customization
Notification Method
Buzzer, LED indicator
Size
3.7 in. L x 3.7 in. W x 1.4 in. H
95mm L× 95mm W× 36mmH
Weight
12.3 oz./350g (different according to different configurations)
Working Temperature
-4°F / -20 °C to +122°F / +50 °C
Storage Temperature
-40°F / -40 °C to +185°C / +85 °C
Humidity
5% to 95% RH non-condensing

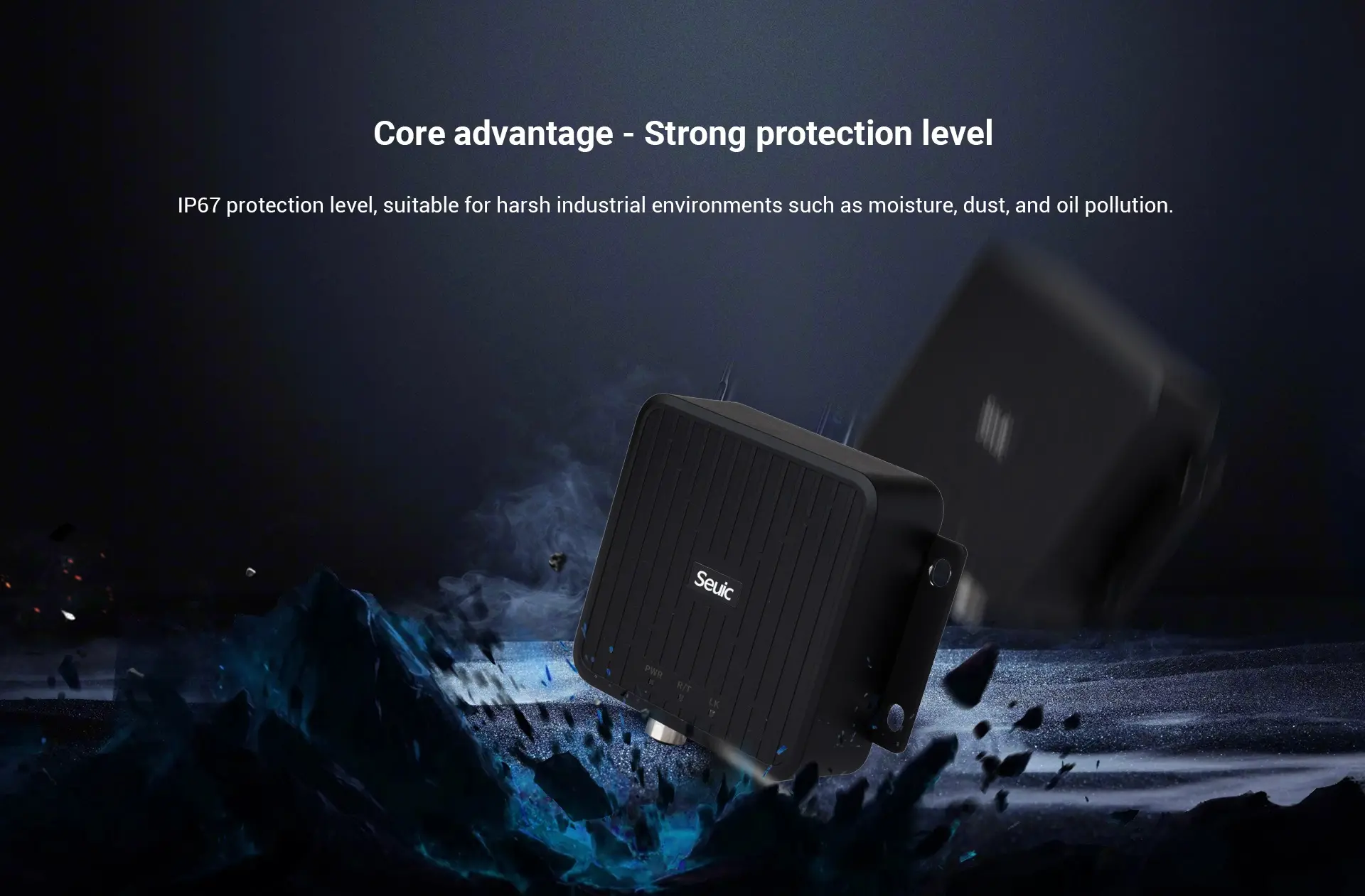

Waterproof and Dustproof Industrial Grade
IP67
Seismic Resistance
Vibration amplitude: 2cm
Vibration frequency: 1~10Hz
Vibration direction: up, down, left, right and random
Electrostatic Discharge(ESD)
± 8kV contact discharge
RFID Performance Parameters
Tag Protocol
EPC C1 GEN2 / ISO18000-6C
Working Frequency
Default: 920MHz - 925MHz (China)
860Mhz - 960Mhz (it can be adjusted according to the requirements of different countries or regions)
Work Mode
Default random frequency hopping, support fixed frequency
Output Power
10-30dBm adjustable, step power 1dB
Antenna Gain
3dbiC (circular polarization)
Read Distance
>2m (H47 tag), the actual distance is related to the tag and environment
Write Distance
0-1m (H47 tag), the actual distance is related to the tag and environment
Multi-tag Speed
>50pcs/s (H47 tag), the actual speed is related to the tag and environment
Third Party Application Development Support
Upper Computer Software
Windows
System Programming Environment
VS2015
Accessories
Standard Hardware
M12 12Pin power supply +GPIO adapter cable, M12 8Pin communication adapter cable
Standard Software
Upper computer demo, demo user manual SDK, interface user manual
