HS220 Industrial Wireless Barcode Scanner

  • Image Sensor: 1280 x 800
  • Illumination: Intelligent adjustable diffuse light(red/white)
  • Resolution: 1D 3 mil; 2D 5 mil
  • Environmental Sealing: IP54
  • Battery Capacity: Rated Capacity: 3150mAh
  • Drop Specifications: 6 ft./1.8 m drops to concrete

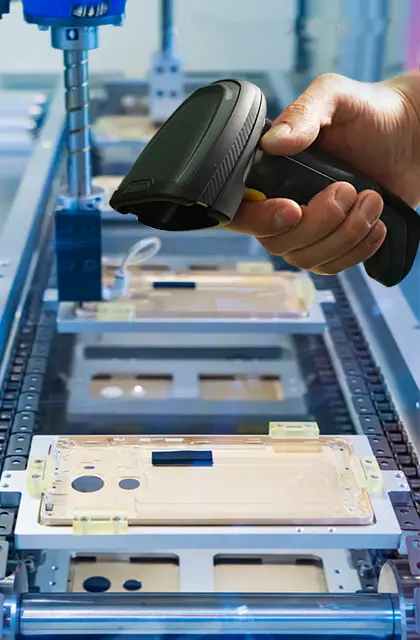

The Seuic HS220 wireless barcode scanner is a high-performance wireless barcode scanner designed specifically for electronics manufacturing. Compared to general scanners, the HS220 wireless barcode scanner offers superior performance in decoding micro-sized, high-density barcodes, as well as laser-engraved or inkjet barcodes on printed circuit boards, 2D codes on metal parts, and barcodes with poor printing quality. It excels in both decoding accuracy and user experience.

Features

● High resolution optical lens for superior scanning of tiny dense codes.

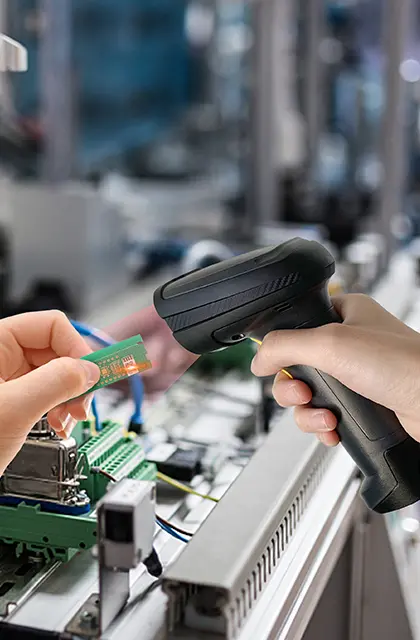

● Scan any barcode on any medium, printed on plastic and metal electronic subcomponents such as PCB boards, memory chips and more.

HS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode ScannerHS220 Industrial Wireless Barcode Scanner

Specifications
Physical Characteristics
Image Sensor
1280 * 800 COMS sensor with global shutter
Camera Option
High density
Standard range
Illumination LEDs
Intelligent adjustable diffuse light (red/white)
Aiming
Cross-shape laser aimer
Sensor Speed
60fps
Support Symbologies
1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc.
2D: PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, etc.
Scan Angle
Pitch angle ±60° and skew angle ±55°
Scan Density
1D code: 3mil
2D code: 5mil
Standard Range for Typical Symbols
Refer to the specifications for detailed parameters
Vibration Motor
Support
Communication Interface
RS232, USB keyboard, USB COM
Dimension
6.5 in. L × 2.7 in. W × 4.2 in. H
166.2 mm L × 68.5 mm W × 105.5mm H
Weight
7.5oz±0.1oz / 213g±3g
Operating Temperature
32 °F to 122 °F / 0°C to 50°C
Storage Temperature
-4 °F to 158 °F / -20°C to 70°C
Humidity
5% to 95% RH non-condensing
Environmental Sealing
IP54
Light Levels
0 to 100,000 Lux
Drop Specification
50 rounds of 6 ft./1.8m drops across the operating temperature range
Impact Specification
2000 rounds of 0.5m tumble
Shell Material
Highly resistant industrial plastic
Battery Capacity
Rated capacity: 3150mAh; typical capacity: 3500mAh; removable battery；
Charge Time from Empty to Full
6~8 hours over USB
2.5 hours over external power
Maximum Storage in Batch Mode
5000
ESD Protection
±15kV Air discharge, ±8kV direct discharge
Certificates
CE, FCC, RoHS, UN38.3
Standard Cradle Specifications
Normal Rated Charging Power
DC: 10W
USB: 2.5W
Dimension
219.3mm(L) * 88.4mm(W) * 62.3mm(H)
Weight
174g±3g
Operating Temperature
32 °F to 122 °F/0°C to 50°C
Storage Temperature
-4 °F to 158 °F / -20°C to 70°C
Humidity
5% to 95% RH non-condensing
Environmental Sealing
IP51 (water and dust resistant)
Mechanical Shock
50 rounds of 3.9 ft. / 1.2m drops across the operating temperature range
Shell Material
Highly resistant industrial palstic
ESD Protection
±15kV Air discharge, ±8kV direct discharge
Power Adapter
5.0V/2.0A
Certificates
CE, FCC, RoHS
