X4 Industrial Barcode Scanner

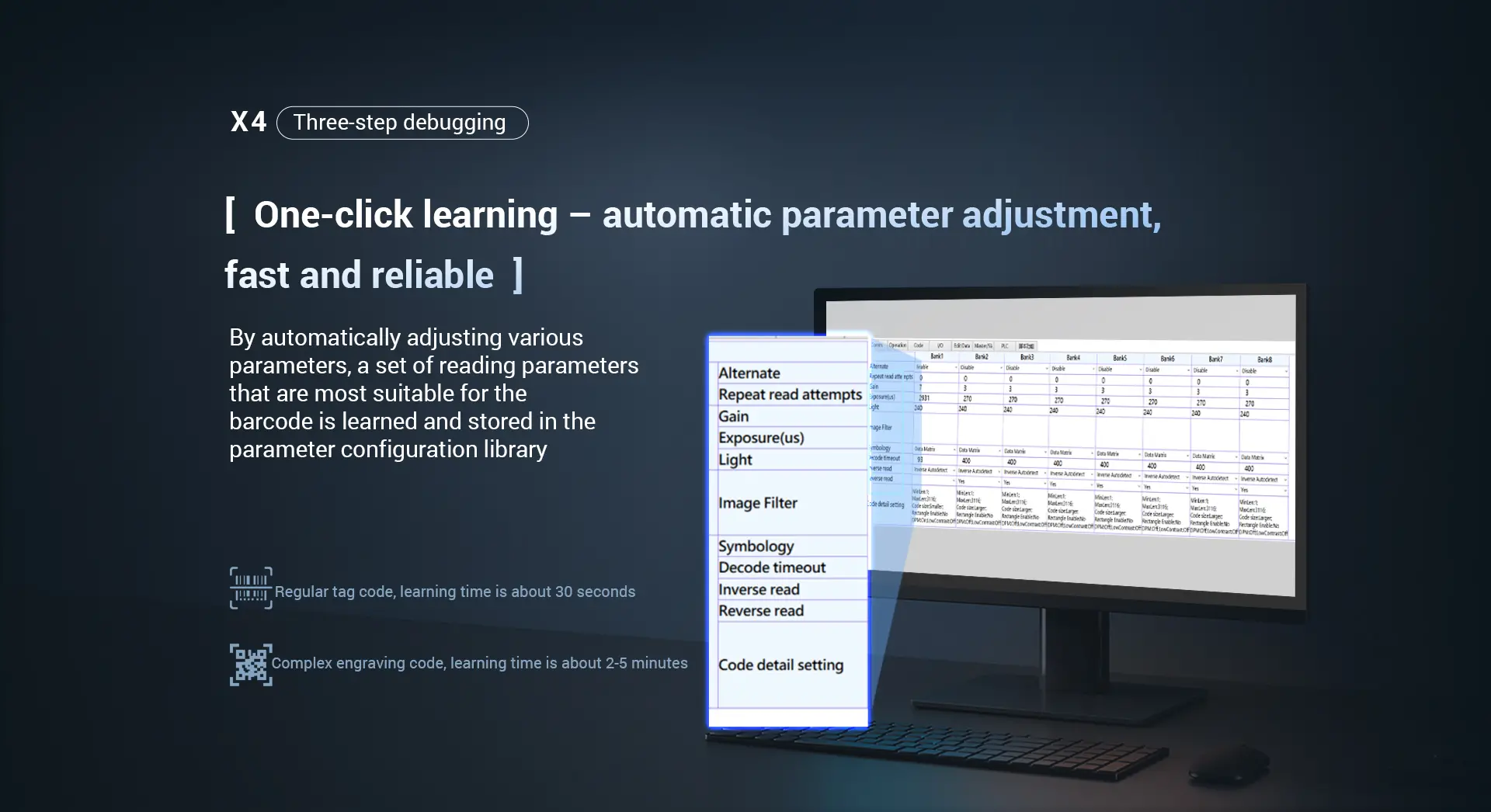

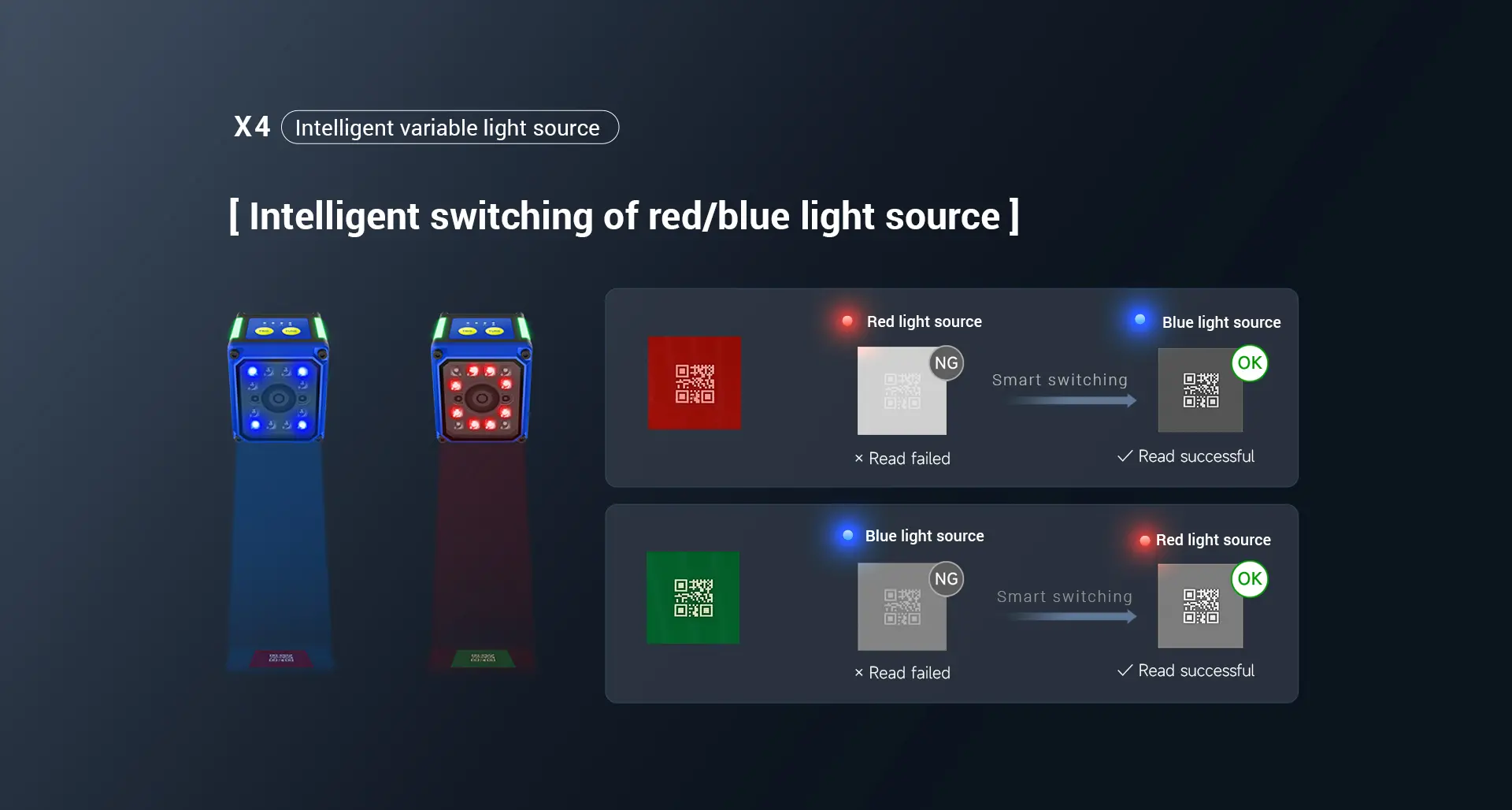

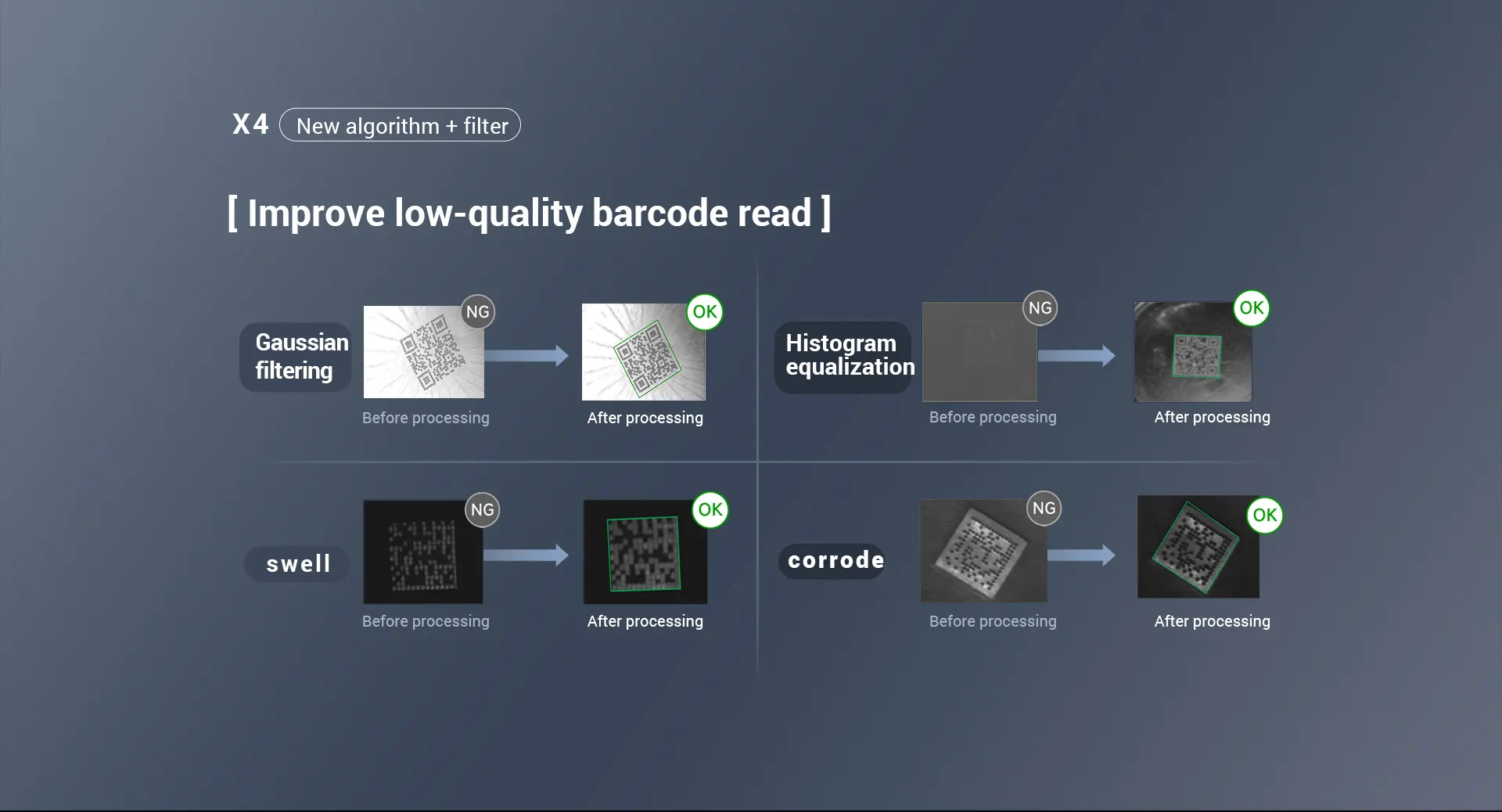

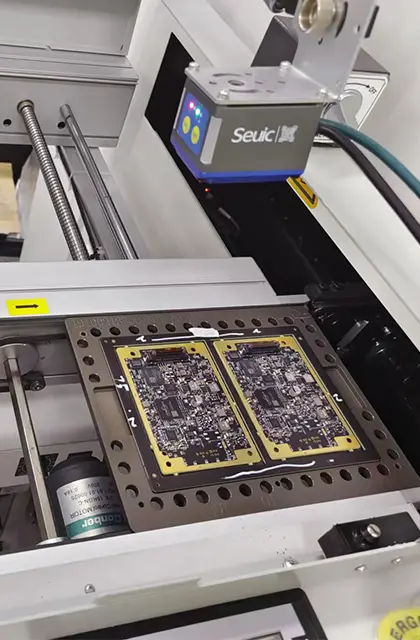

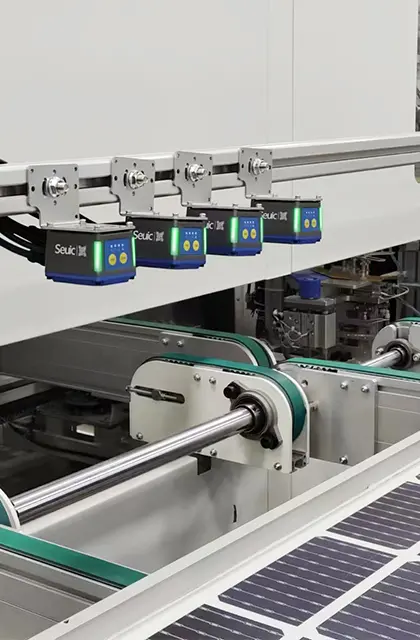

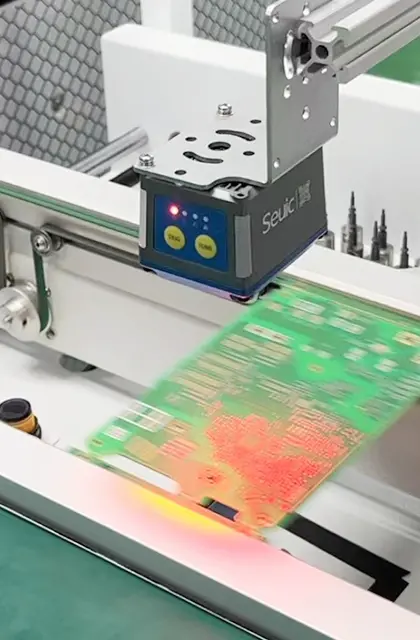

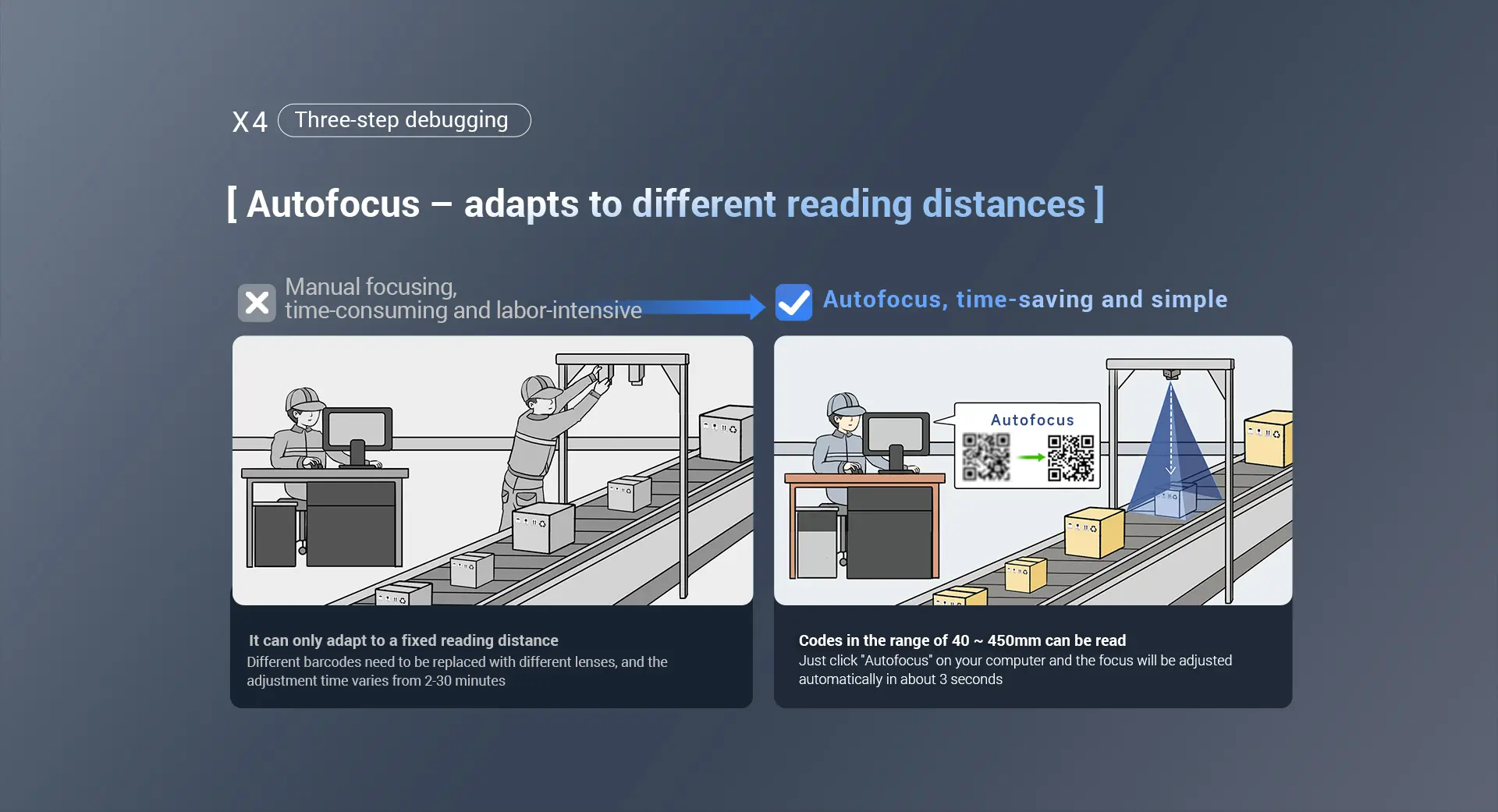

The X4 industrial barcode scanner, a high-performance industrial barcode reader, is ideal for various applications including SMT line mobile code reading, assembly line picking and assembly code reading, electronic test fixtures, and automation equipment integration. It is designed for simplicity and ease of use, with features of lens activation in 1 second, autofocus in 3 seconds, and automatic parameter adjustment in 30 seconds, making code reading setup straightforward. Equipped with an advanced decoding algorithm and image processing filter, the X4 industrial barcode scanner excels at reading challenging DPM barcodes. Its intelligent variable light source can automatically adjust to different barcode backgrounds, simplifying debugging.

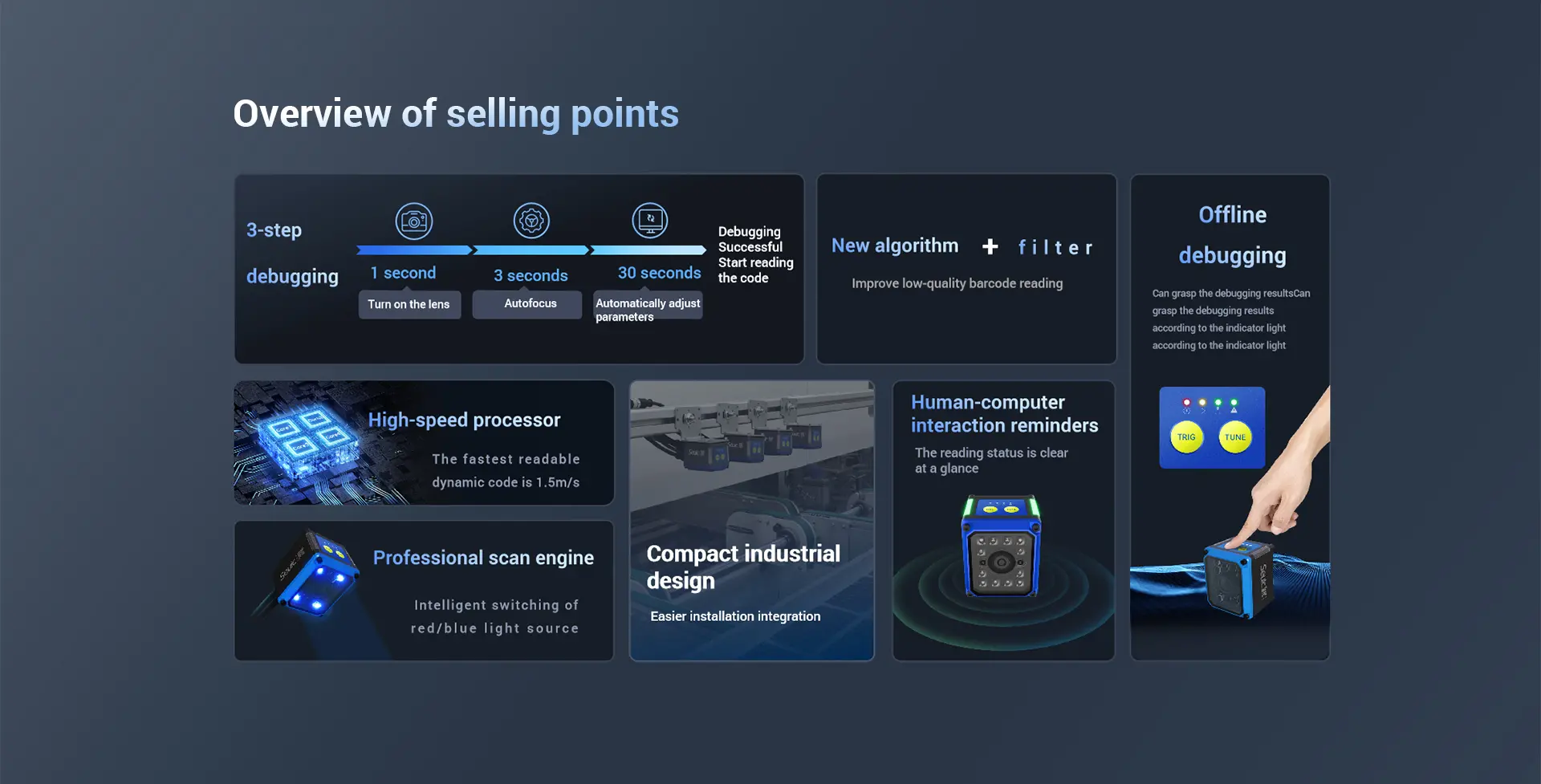

Features

● Minimum 3mil 1D/2D laser engraving code, up to 1.5 m/s code in motion can be identified, high density, low contrast, laser engraved codes, inkjet codes, color codes can be recognized easily.

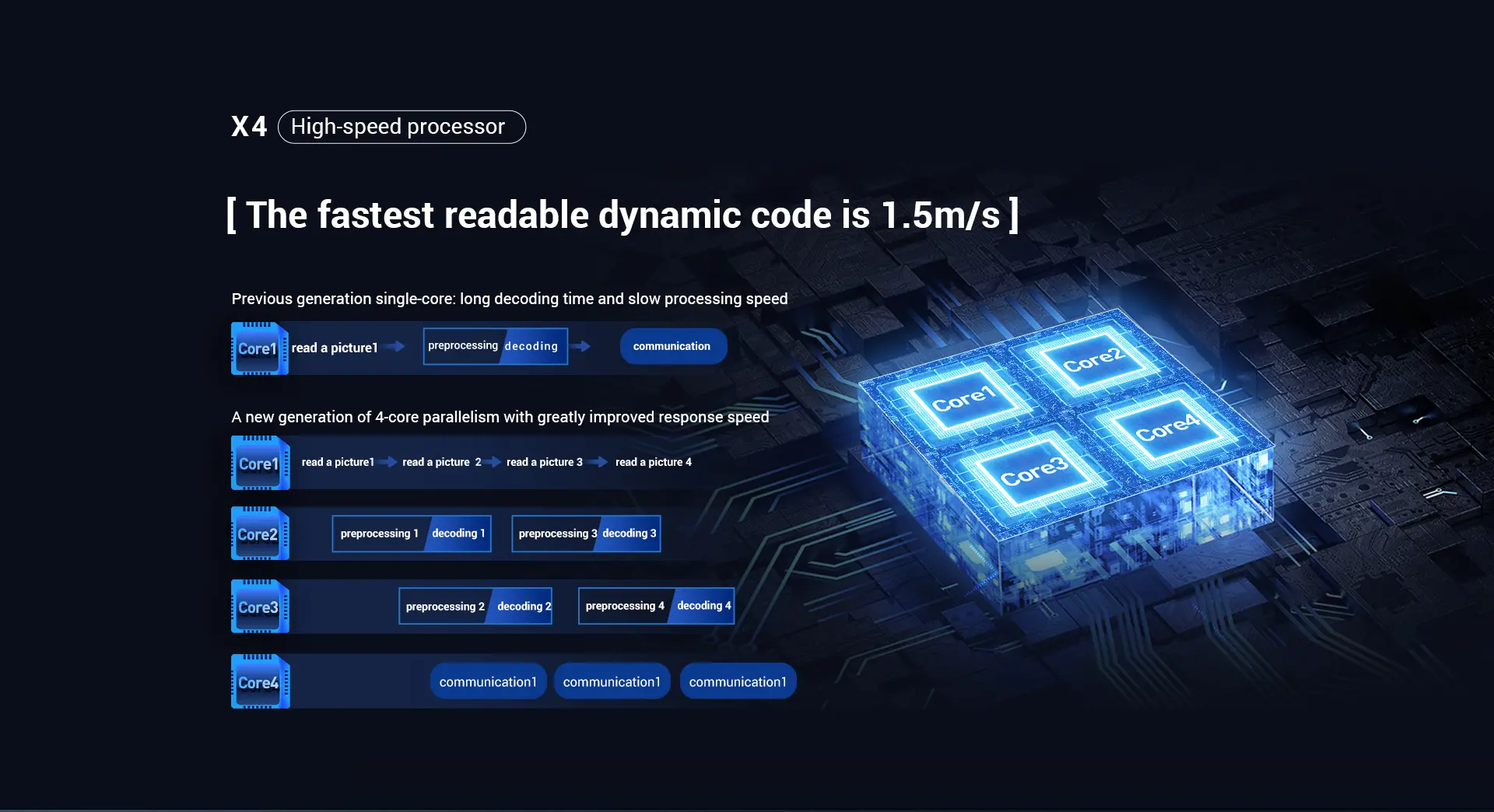

● Qual-core high speed processor, data capture-decoding-communication processing at the same time.

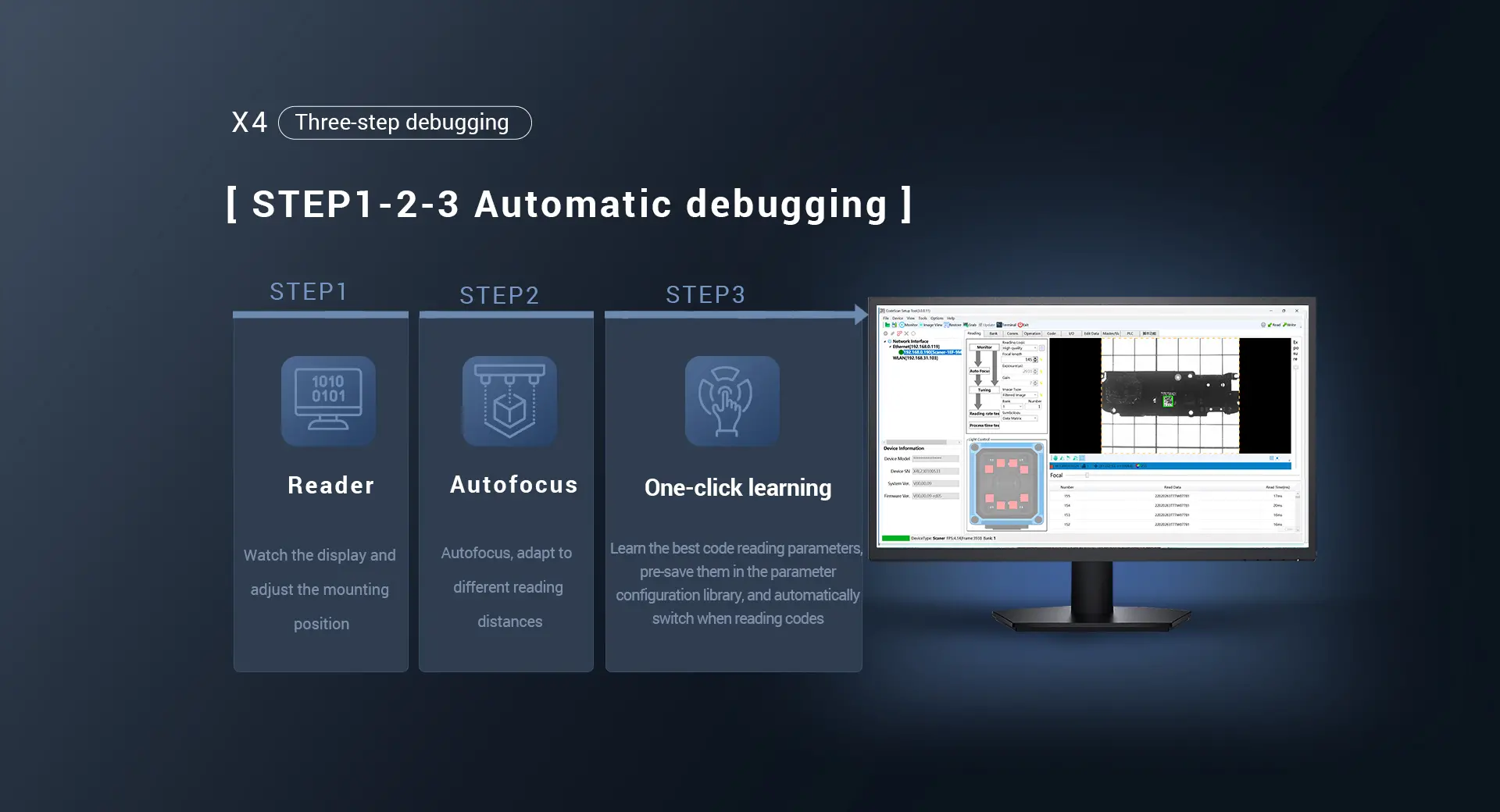

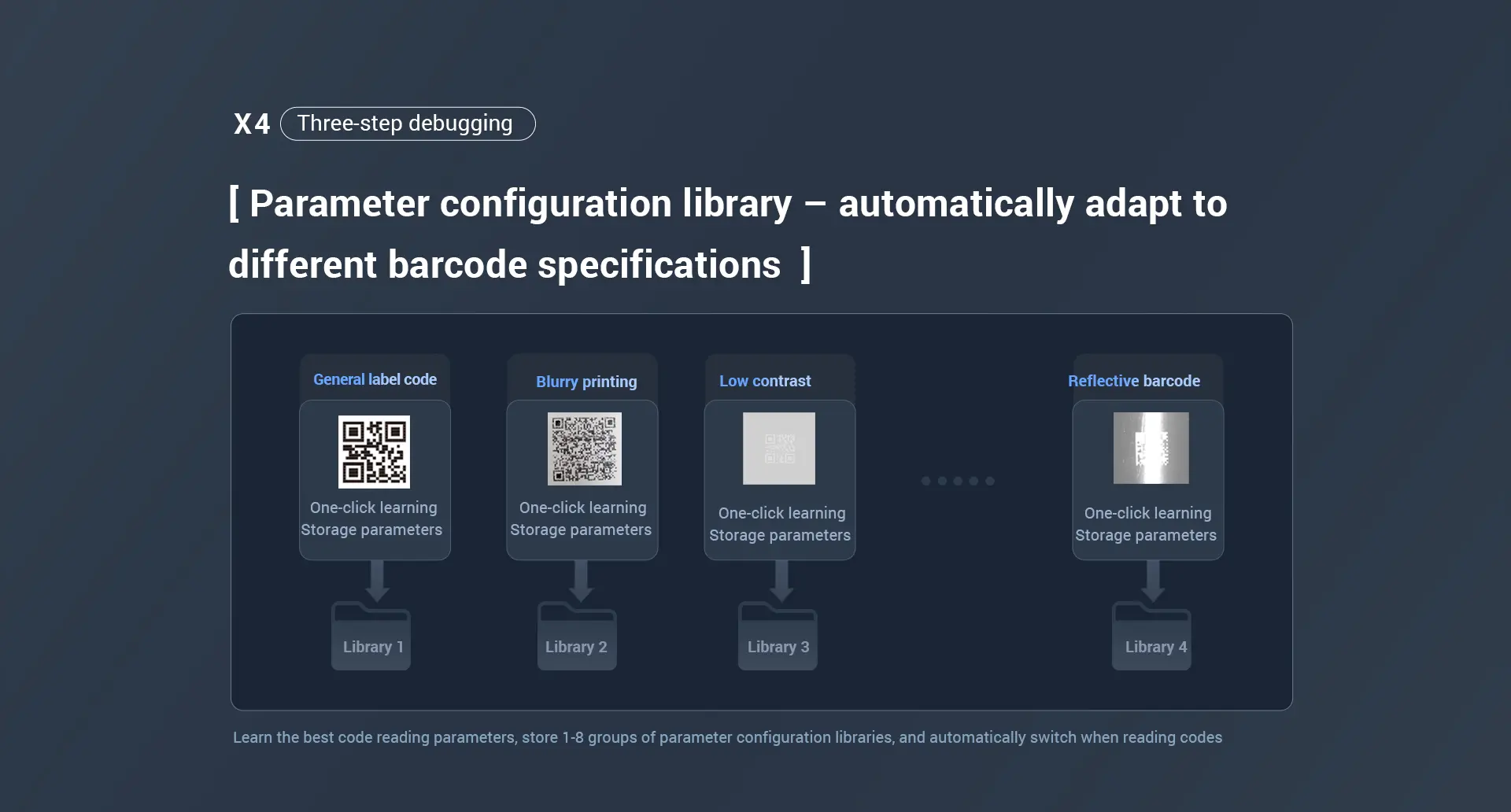

● Only 3 steps to finish fast deployment.

X4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode ScannerX4 Industrial Barcode Scanner

Specifications
Receiver
Sensor
CMOS image sensor with global shutter
Number of Pixels
1.3M, 1280 x 1024
Light Emitter
Light Source

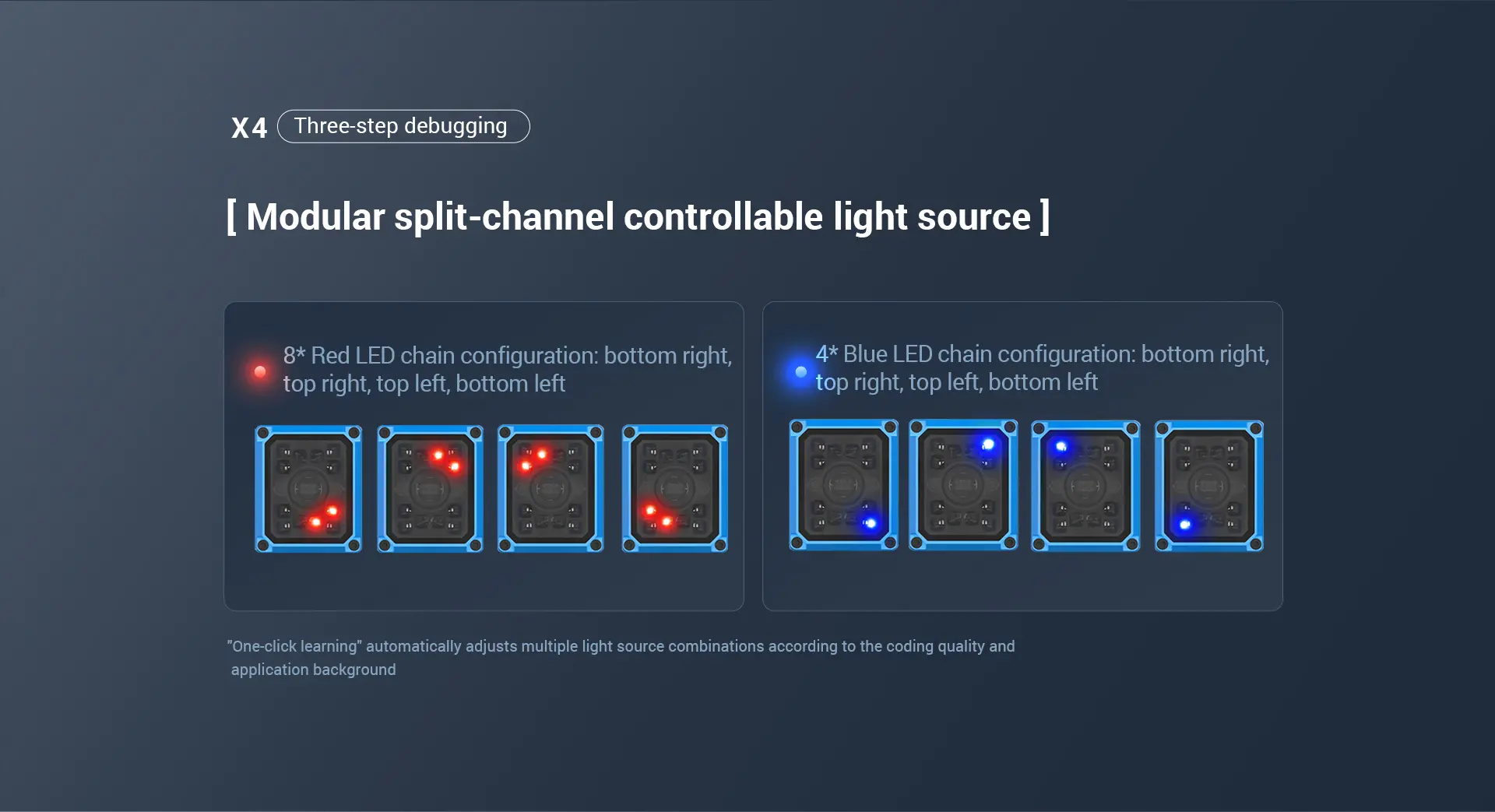

High-intensity red LED and blue LED
Aimer
Laser dual-point positioning aimer Class II
Focus Adjustment
Focus Adjustment
Automatic
Reading Specifications
Supported Symbol
1D: Code128, GS1 128, Code39, Code93, codabar, 2of5 (Industrial 2of5), EAN/UPC
2D: QR, DataMatrix (ECC200), PDF417, Micro PDF417
Minimum Resolution
1D: 3.3mil
2D: 2.0mil
Reading Distance
50mm to 450mm
I/O Specifications
Control Input
Points: 2
Input Type: Bidirectional voltage input
Maximum Rating: 30V
Minimum ON voltage: ＜4V
Maximum OFF Current: 0.001A
Control Output
Points: 3
Output Type: 3 optocoupler output
Maximum Rating: 30V
Maximum Load Current
1 output: 50 mA or less
3-output total: 100 mA or less
Leakage current when OFF: 0.1 mA or less
Residual voltage when ON: 1 V or less
Ethernet
Supported Protocol: TCP/UDP
Serial Communication
Refer to the specifications for detailed parameters
USB
Communication Standard: USB 2.0 full speed compliant
Environmental Resistance
Enclosure Rating
IP65
Ambient Temperature
0°C to 50°C
Ambient Storage Temperature
-20°C to 70°C
Relative Humidity
5 to 95% RH (No condensation)
Storage Ambient Humidity
5 to 95% RH (No condensation)
Ambient Light
0 to 10000 lux
Operating Environment
No dust or corrosive gas present
Rating
Power Supply Voltage
10 to 30V DC
Current Consumption
0.5 to 1.5 A
Weight
Weight
Approx.215 g

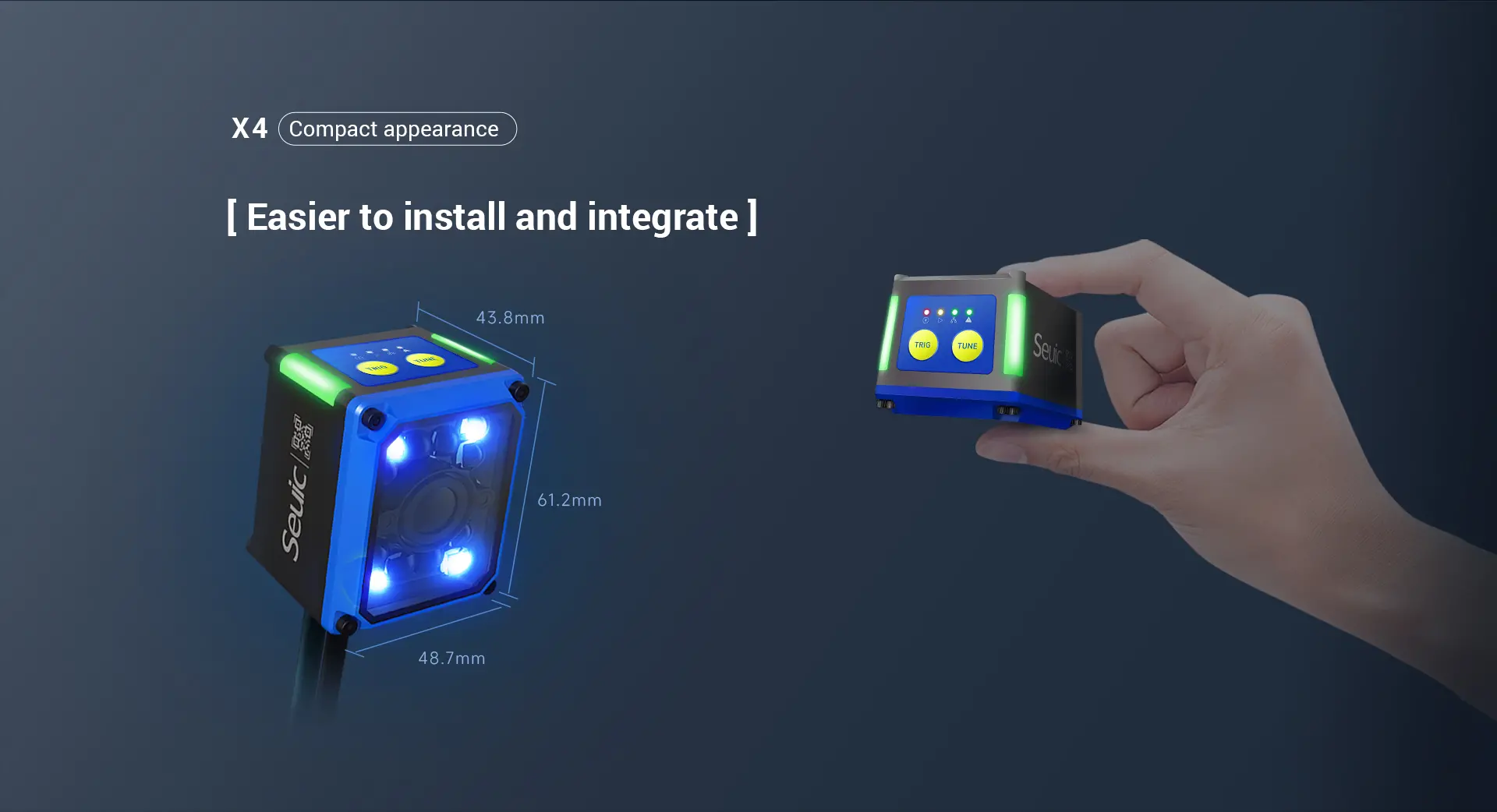

Dimensions
Dimensions (L x W x H)
61.2 mm x 48.7 mm x 43.8mm
* Please be aware that the page's content may change in response to product updates, and that no notice will be sent out when changes occur.
